Chromatogram – HS Peanut Butter Analysis


Click to view full article

All studies represented by the chromatogram below have been conducted utilizing Vacuum Assisted Sorbent Extraction & Headspace Sorbent Pens™

The most versatile extraction and sample preconcentration technology available for GC and GCMS systems. Sorbent Pens™ combine the features of SPME and classical ¼” adsorbent traps in a design with far more flexibility and enhanced performance. The Sorbent Pen™ uses an entirely new approach for sample extraction.

Peanut Butter analysis by VASE & Headspace Sorbent Pens

h

Instrument: 5800 SPDU Headspace VOC to SVOC
Run date: May 3, 2017
Sample description: Peanut Butter, creamy, 16oz., lot # 69504004
Weight of sample (g): 0.5386
Sample conditions: 40mL vial with 15 hours at 25°C 100rpm+ split 30:1 + preheat 2 min
Split Mode: Agilent Splitter, 30:1
Column: DB-5MS UI 30 x 0.250 x 0.50
Carrier: Helium 1.5mL/min
Oven Temp: 35°C hold 5min, 10°C/min to 150, 20°C/min to 300°C, hold 5 min (29 min run time)
GCMS: Agilent 7890B GC 5977A MS
MS Operation: 33-450, 3 scans/sec

1. Acetaldehyde
2. Acetone
3. Pentane
4. Dimethyl sulfide
5. Acetic acid, methyl ester
6. Propanal, 2-methyl-
7. Acetic acid
8. 2,3-Butanedione
9. 2-Butanone
10. 1-Propanol, 2-methyl-
11. Butanal, 3-methyl-
12. Butanal, 2-methyl-
13. 2,3-Pentanedione
14. 1H-Pyrrole, 1-methyl-
15. Pyrazine, tetramethyl-
16. Pyrrole
17. Pentanal, 2-methyl-
18. Toluene
19. Octane
20. Hexanal
21. Pyrazine, methyl-
22. Furfural
23. 1H-Pyrrole, 3-methyl-
24. 1H-Pyrrole, 2-methyl-
25. 2-Furanmethanol
26. 2-Heptanone
27. Heptanal
28. 2(5H)-Furanone
29. Butyrolactone
30. Pyrazine, 2,5-dimethyl-
31. Pyrazine, ethyl-

32. Pyrazine, 2,3-dimethyl-
33. 2H-Pyran-2-one, tetrahydro-
34. 2-Furancarboxaldehyde, 5-methyl-
35. Benzaldehyde
36. Dimethyl trisulfide
37. Furan, 2-pentyl-
38. Pyrazine, 2-ethyl-6-methyl-
39. Pyrazine, trimethyl-
40. Pyrazine, 2-ethyl-5-methyl-
41. Pyrazinamide
42. Pyrazine, 2-ethenyl-5-methyl-
43. Ethanone, 1-(2-pyridinyl)-
44. Benzeneacetaldehyde
45. Ethanone, 1-(1H-pyrrol-2-yl)-
46. Acetophenone
47. Pyrazine, 3-ethyl-2,5-dimethyl-
48. Pyrazine, 2-ethyl-3,5-dimethyl-
49. 2,3-Dimethyl-5-ethylpyrazine
50. Pyrazine, 2,5-diethyl-
51. Nonanal
52. Methyl nicotinate
53. 5H-5-Methyl-6,7-dihydrocyclopentapyrazine
54. Pyrazine, 3,5-diethyl-2-methyl-
55. 6-Aminoindoline
56. Benzofuran, 2,3-dihydro-
57. (-)-Carvone
58. Benzeneacetaldehyde, .alpha.-ethylidene-
59. 2-Methoxy-4-vinylphenol
60. 2,4-Decadienal
61. 2-Pentadecanone
62. Pentadecanal-

Chromatogram – HS Mango Analysis


Click to view full article

All studies represented by the chromatogram below have been conducted utilizing Vacuum Assisted Sorbent Extraction & Headspace Sorbent Pens™

The most versatile extraction and sample preconcentration technology available for GC and GCMS systems. Sorbent Pens™ combine the features of SPME and classical ¼” adsorbent traps in a design with far more flexibility and enhanced performance. The Sorbent Pen™ uses an entirely new approach for sample extraction.

Mango analysis by VASE & Headspace Sorbent Pens

h

Instrument: 5800 HSP
Run date: August 3, 2016
Sample description: Fresh Mango
Weight of sample (g): 7.7366
Sample conditions: 40mL vial with 15 hours equilibration
Dersorb conditions: 260°C for 5 min.
Split Mode: Splitless
Precolumn: DB1 5m length x 0.25mm ID, 0.25μm film
Column: DB1 30m length x 0.25mm ID, 0.5μm film
Carrier: He, 1.5cc/min. constant flow
Oven Temp: He, 1.5cc/min. constant flow 40°C hold 5min., 6°C/min. to 95°C, 10°C/min. to 140°C, 10°C/ min. to 325 hold 5min.
GCMS: Agilent 7890B/5977A
MS Operation: 34-450 amu, 1.8 scans/sec

1. Disulfide, dimethyl
2. Butanoic acid, ethyl ester
3. Butanoic acid, butyl ester
4. .beta.-Myrcene
5. .alpha.-Phellandrene
6. 3-Carene
7. Limonene
8. Terpinolene
9. Caryophyllene
10. Humulene
11. .beta.-copaene
12. Naphthalene, 1,2,3,5,6,7,8,8a-octahydro-1,8a-dimethyl-7-(1-methylethenyl)-, [1R-(1.alpha.,7.beta.,8a.alpha.)]-

Chromatograph – HS Eggnog Analysis


Click to view full article

All studies represented by the chromatogram below have been conducted utilizing Vacuum Assisted Sorbent Extraction & Headspace Sorbent Pens™

The most versatile extraction and sample preconcentration technology available for GC and GCMS systems. Sorbent Pens™ combine the features of SPME and classical ¼” adsorbent traps in a design with far more flexibility and enhanced performance. The Sorbent Pen™ uses an entirely new approach for sample extraction.

Eggnog analysis by VASE & Headspace Sorbent Pens

h

Instrument: 5800 HSP
Run date: December 7, 2016
Sample description: Eggnog
Weight of sample (g): 1
Sample conditions: 20mL vial with 2 hours equilibration at 25°C
Desorb Conditions: 260°C for 5 min.
Split Mode: Splitless
Precolumn: DB1 5m length x 0.25mm ID, 0.25μm film
Column: DB1 30m length x 0.25mm ID, 0.5μm film
Carrier: He, 1.5cc/min. constant flow
Oven Temp: 40°C hold 5 min., 10°C/min. to 300°C, 300°C hold 7 min. (solvent delay at 6 min.)
GCMS: Agilent 7890B/5977A
MS Operation: 34-450 amu, 1.8 scans/sec

1. Acetoin
2. Butanoic acid, ethyl ester
3. Furfural
4. 2-Furanmethanol
5. Benzaldehyde
6. D-Limonene
7. Sorbic Acid
8. 2(3H)-Furanone, dihydro-4-hydroxy-
9. Octanoic acid
10. 5-Hydroxymethylfurfural

11. Cinnamaldehyde, (E)-
12. Safrole
13. Eugenol
14. n-Decanoic acid
15. Vanillin
16. Coumarin
17. Tetradecanoic acid
18. n-Hexadecanoic acid
19. cis-Vaccenic acid
20. Octadecanoic acid
21. Glycerol tricaprylate
22. Cholesterol

Chromatograph – HS Milk Analysis


Click to view full article

All studies represented by the chromatogram below have been conducted utilizing Vacuum Assisted Sorbent Extraction & Headspace Sorbent Pens™

The most versatile extraction and sample preconcentration technology available for GC and GCMS systems. Sorbent Pens™ combine the features of SPME and classical ¼” adsorbent traps in a design with far more flexibility and enhanced performance. The Sorbent Pen™ uses an entirely new approach for sample extraction.

Milk analysis by VASE & Headspace Sorbent Pens

h

Instrument: 5800 HSP
Run date: February 28, 2017
Sample description: Whole Milk
Amount of sample: 0.5mL
Sample conditions: 40mL vial with 15 hours equilibration at 25°C 100RPM, preheat for 45 seconds
Dersorb conditions: 260°C for 5 min.
Split Mode: Split 6:1
Precolumn: DB1 5m length x 0.25mm ID, 0.25μm film
Column: DB1 30m length x 0.25mm ID, 0.5μm film
Carrier: He, 1.5cc/min. constant flow
Oven Temp: 40°C hold 5 min., 10°C/min. to 325°C, 325 hold 5 min. (solvent delay at 6 min.)
GCMS: Agilent 7890B/5977A
MS Operation: 34-450 amu, 2 scans/sec
Pen ID: (Tenax) 411-0000084

1. Formic acid
2. Acetic acid
3. 2-Furanmethanol
4. Isomaltol
5. Maltol
6. 4H-Pyran-4-one, 2,3-dihydro-3,5-dihydroxy-6-methyl-
7. Benzoic acid
8. 5-Hydroxymethylfurfural
9. n-Decanoic acid
10. Dodecanoic acid
11. n-Hexadecanoic acid
12. Oleic Acid
13. Octadecanoic acid
14. Cholesterol

Chromatograph – HS Gum Analysis


Click to view full article

All studies represented by the chromatogram below have been conducted utilizing Vacuum Assisted Sorbent Extraction & Headspace Sorbent Pens™

The most versatile extraction and sample preconcentration technology available for GC and GCMS systems. Sorbent Pens™ combine the features of SPME and classical ¼” adsorbent traps in a design with far more flexibility and enhanced performance. The Sorbent Pen™ uses an entirely new approach for sample extraction.

Gum analysis by VASE & Headspace Sorbent Pens

h

Instrument: 5800 SPDU Headspace VOC to SVOC
Run date: April 26, 2017
Sample description: Gum
Weight of sample (g): 0.0745
Sample conditions: 20mL vial with 1hour at 25°C 100rpm
Split Mode: Split 2, 30:1
Column: Db-5MS UI 30 x 0.250 x 0.50
Carrier: Helium 1.5mL/min
Oven Temp: 35°C hold 5 min., 10°C/min. to 150, 20°C/min to 300°C, hold 5min (29 min. run time)
GCMS: Agilent 7890B GC 5977A MS
MS Operation: 34-450, 3 scans/sec

1. Propanoic acid, 2-methyl-
2. Butanoic acid, 3-methyl-
3. Butanoic acid, 2-methyl-
4. Heptanal
5. Pyrazine, 2,5-dimethyl-
6. Benzaldehyde
7. Pentanoic acid, 4-methyl-
8. Hexanoic acid
9. Pyrazine, trimethyl-
10. Propanoic acid, 2-hydroxy-, butyl ester
11. D-Limonene
12. Ethanone, 1-(1H-pyrrol-2-yl)-
13. Acetophenone
14. Pyrazine, 3-ethyl-2,5-dimethyl-
15. Pyrazine, tetramethyl-
16. 2-Nonanone
17. Nonanal
18. 1,6-Octadien-3-ol, 3,7-dimethyl-
19. Octanoic acid, ethyl ester
20. Benzeneacetic acid, ethyl ester

21. Acetic acid, 2-phenylethyl ester
22. Benzeneacetaldehyde, .alpha.-ethylidene-
23. Vanillin
24. Benzoic acid, pent-2-yl ester
25. Tetradecane
26. 5-Methyl-2-phenyl-2-hexenal
27. Pentadecane
28. Butylated Hydroxytoluene
29. 1H-2-Benzopyran-1-one, 3,4-dihydro-8-hydroxy-3-methyl-
30. Dodecanoic acid, ethyl ester
31. Benzophenone
32. Tetradecanoic acid, ethyl ester
33. Caffeine
34. 2-Heptadecanone
35. Hexadecanoic acid, methyl ester
36. Di-sec-butyl phthalate
37. 9-Octadecenoic acid, methyl ester
38. Linoleic acid ethyl ester
39. 9-Octadecenoic acid, (E)-
40. Octadecanoic acid, ethyl ester

Chromatograph – HS Dark Chocolate Analysis


Click to view full article

All studies done in the chromatogram below have been produced by the HS Sorbent Pen™

The most versatile extraction and sample preconcentration technology available for GC and GCMS systems. Sorbent Pens™ combine the features of SPME and classical ¼” adsorbent traps in a design with far more flexibility and enhanced performance. The Sorbent Pen™ uses an entirely new approach for sample extraction.

Dark Chocolate analysis by VASE (Vacuum Assisted Sorbent Extraction) & Headspace Sorbent Pens

h

Instrument: 5800 HSP
Run date: November 17, 2016
Sample description: Dark Chocolate
Weight of sample (g): 1
Sample conditions: 40 mL vial with 15 hours equilibration at 25°C
Desorb Conditions: 260°C for 5 min.
Split Mode: Splitless
Precolumn: DB1 5m length x 0.25mm ID, 0.25μm film
Column: DB1 30m length x 0.25mm ID, 0.5μm film
Carrier: He, 1.5cc/min. constant flow
Oven Temp: 40°C hold 5 min., 10°C/min. to 325°C, 325 hold 5 min. (solvent delay at 6 min)
GCMS: Agilent 7890B/5977A
MS Operation: 34-450 amu, 1.8 scans/sec
Pen ID: 411-0000008

1. Propanoic acid, 2-methyl-
2. Butanoic acid, 3-methyl-
3. Butanoic acid, 2-methyl-
4. Heptanal
5. Pyrazine, 2,5-dimethyl-
6. Benzaldehyde
7. Pentanoic acid, 4-methyl-
8. Hexanoic acid
9. Pyrazine, trimethyl-
10. Propanoic acid, 2-hydroxy-, butyl ester
11. D-Limonene
12. Ethanone, 1-(1H-pyrrol-2-yl)-
13. Acetophenone
14. Pyrazine, 3-ethyl-2,5-dimethyl-
15. Pyrazine, tetramethyl-
16. 2-Nonanone
17. Nonanal
18. 1,6-Octadien-3-ol, 3,7-dimethyl-
19. Octanoic acid, ethyl ester
20. Benzeneacetic acid, ethyl ester

21. Acetic acid, 2-phenylethyl ester
22. Benzeneacetaldehyde, .alpha.-ethylidene-
23. Vanillin
24. Benzoic acid, pent-2-yl ester
25. Tetradecane
26. 5-Methyl-2-phenyl-2-hexenal
27. Pentadecane
28. Butylated Hydroxytoluene
29. 1H-2-Benzopyran-1-one, 3,4-dihydro-8-hydroxy-3-methyl-
30. Dodecanoic acid, ethyl ester
31. Benzophenone
32. Tetradecanoic acid, ethyl ester
33. Caffeine
34. 2-Heptadecanone
35. Hexadecanoic acid, methyl ester
36. Di-sec-butyl phthalate
37. 9-Octadecenoic acid, methyl ester
38. Linoleic acid ethyl ester
39. 9-Octadecenoic acid, (E)-
40. Octadecanoic acid, ethyl ester

Chromatogram – HS Cookie Analysis


Click to view full article

All studies represented by the chromatogram below have been conducted utilizing Vacuum Assisted Sorbent Extraction & Headspace Sorbent Pens™

The most versatile extraction and sample preconcentration technology available for GC and GCMS systems. Sorbent Pens™ combine the features of SPME and classical ¼” adsorbent traps in a design with far more flexibility and enhanced performance. The Sorbent Pen™ uses an entirely new approach for sample extraction.

Cookie analysis by VASE & Headspace Sorbent Pens

h

Instrument: 5800 SPDU Headspace VOC to SVOC
Run date: April 28, 2017
Sample description: Fresh Baked Chocolate Chip Cookie
Weight of sample (g): 1.4723
Sample conditions: 5hrs@25C 100rpm + preheat 2min + split 30:1
Split Mode: Split 2, 30:1
Column: Db-5MS UI 30 x 0.250 x 0.50
Carrier: Helium 1.5mL/min
Oven Temp: 35C hold 5min, 10C/min to 150, 20C/min to 300C, hold 5min (29min run time)
GCMS: Agilent 7890B GC 5977A MS
MS Operation: 33-450, 3 scans/sec

1. Acetaldehyde
2. Ethanol
3. Acetone
4. Propanal, 2-methyl
5. Acetic acid
6. Ethyl Acetate
7. Trichloromethane
8. Butanal, 3-methyl
9. Butanal, 2-methyl
10. Acetoin
11. 1-Butanol, 3-methyl
12. Propylene Glycol
13. Toluene
14. 1-Pentanol
15. Hexanal
16. Pyrazine, methyl
17. Furfural
18. 2-Pentanol, acetate

19. 2-Furanmethanol
20. 1-Butanol, 3-methyl-, acetate
21. 2-Heptanone
22. Heptanal
23. Butyrolactone
24. Pyrazine, 2,5-dimethyl-
25. 2-Furancarboxaldehyde, 5-methyl
26. Benzaldehyde
27. Furan, 2-pentyl
28. Pyrazine, trimethyl
29. Octanal
30. D-Limonene
31. Benzyl alcohol
32. Pyrazine, tetramethyl-
33. 2-Nonanone
34. Nonanal
35. Acetic acid, phenylmethyl ester
36. Piperonal

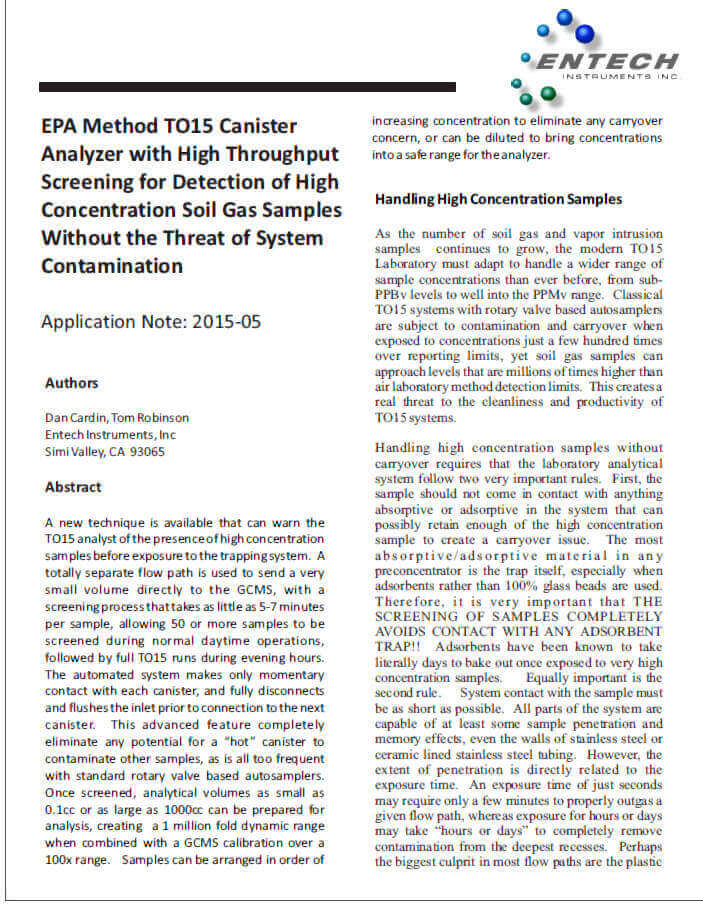

EPA Method TO15 Canister Analyzer with High Throughput Screening for Detection of High Concentration Soil Gas Samples Without the Threat of System Contamination


Click to view full article

Abstract

A new technique is available that can warn the TO15 analyst of the presence of high concentration samples before exposure to the trapping system. A totally separate flow path is used to send a very small volume directly to the GCMS, with a screening process that takes as little as 5-7 minutes per sample, allowing 50 or more samples to be screened during normal daytime operations, followed by full TO15 runs during evening hours. The automated system makes only momentary contact with each canister, and fully disconnects and flushes the inlet prior to connection to the next canister. This advanced feature completely eliminate any potential for a “hot” canister to contaminate other samples, as is all too frequent with standard rotary valve based autosamplers. Once screened, analytical volumes as small as 0.1cc or as large as 1000cc can be prepared for analysis, creating a 1 million fold dynamic range when combined with a GCMS calibration over a 100x range. Samples can be arranged in order of increasing concentration to eliminate any carryover concern, or can be diluted to bring concentrations into a safe range for the analyzer.

Entech 2018 Catalog


Click to view full article

This is the complete Entech 2018 Catalog. You can download the PDF or use our Flipbook viewer (below) for a smoother experience. Please note that not all sampling products are included. The Entech store is the best place to find photos and descriptions of every product we carry.



Sign up for the Entech newsletter to receive updates and surprise discounts!
