4700 Precision Diluter The most precise, flexible, and efficient
standard preparation system on the market
Scroll to Learn More

The Next Generation in Standards Preparation

The 6 Channel 4700 Precision Diluter represents the next generation in accurate canister standards preparation. Utilizing a combination of precise gas flow control, exact pressure measurements, and an ultra-inert flow path, the 4700 is capable of performing multistage dilutions for achieving standards ranging from part-per-billion to low part-per-trillion. The 4700 works with canisters and Bottle-Vacs™ to create dilutions up to 100x, and then allows a second dilution of up to another 100x to yield a total 2 step dilution of up to 10,000x.

With the 4700, small 100L cylinders at 1PPM will allow over 15,000 6L canisters to be filled to atmospheric pressure with a 1PPB mixture by first making a 20PPB working standard that can be further diluted into each canister to be tested. This results in just pennies worth of standard being consumed when performing inertness testing of canisters every 1-2 years. By contrast, typical dynamic diluters that must balance flows and pressures can typically only fill 50–100 6L canisters per high concentration cylinder, making field canister inertness testing prohibitively expensive.

Performing US EPA Method TO15

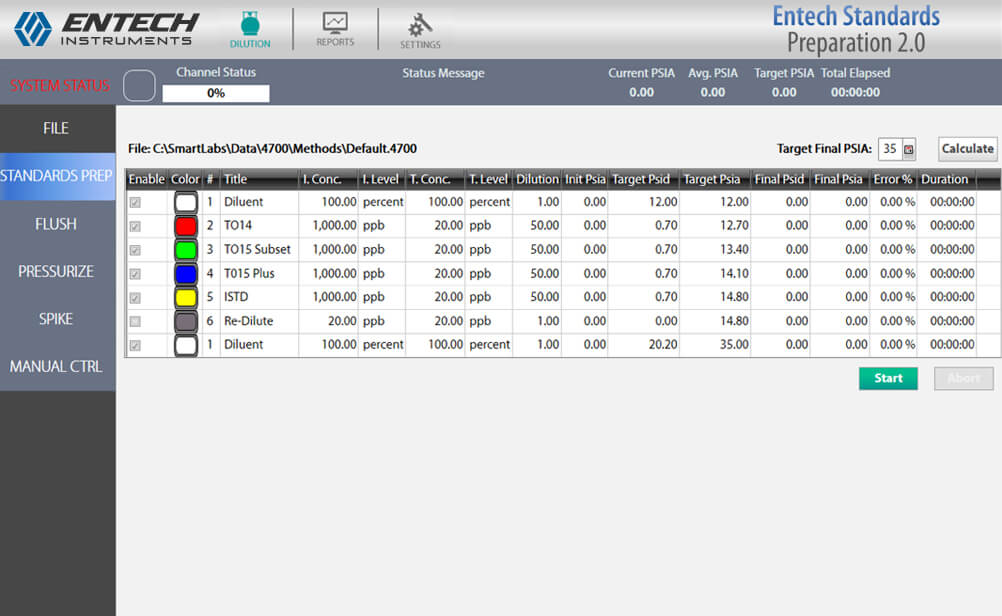

Slide Entech ESP 2.0
Standard Prep Software
Fully automated, accurate delivery of standard from up to 5 other
cylinders 2-100x dilutions
#6 Re-Dilute channel allows another 100x dilution, to achieve
up to a 2 to 10,000 fold dilution overall
Slide Entech ESP 2.0
Standard Prep Software

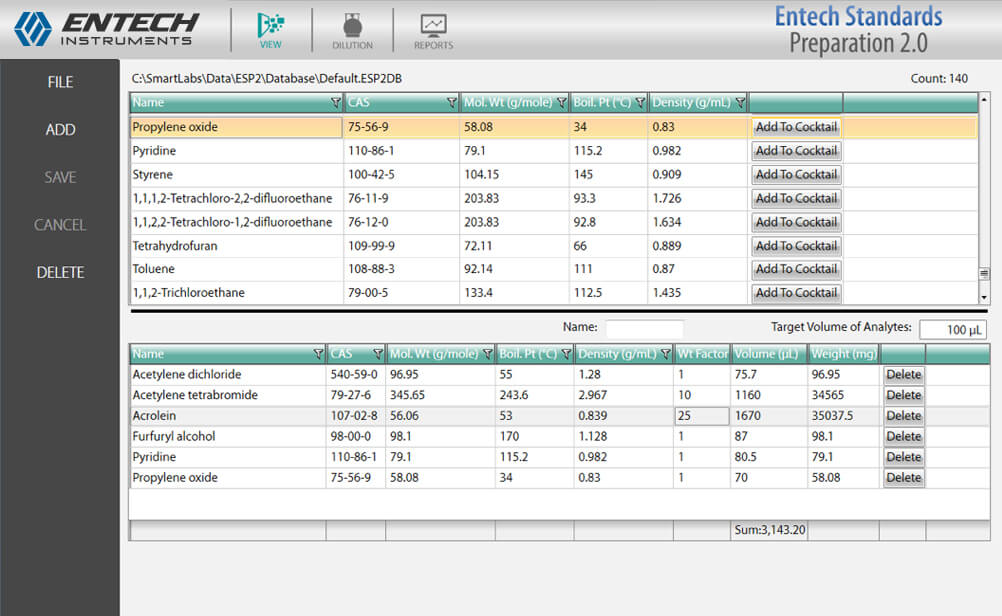

Convenient software allowing the creation of any volatile gas mixture Add and save any volatile compound to the growing database Making Custom Standards from Neat Compounds
Slide Entech ESP 2.0
Standard Prep Software

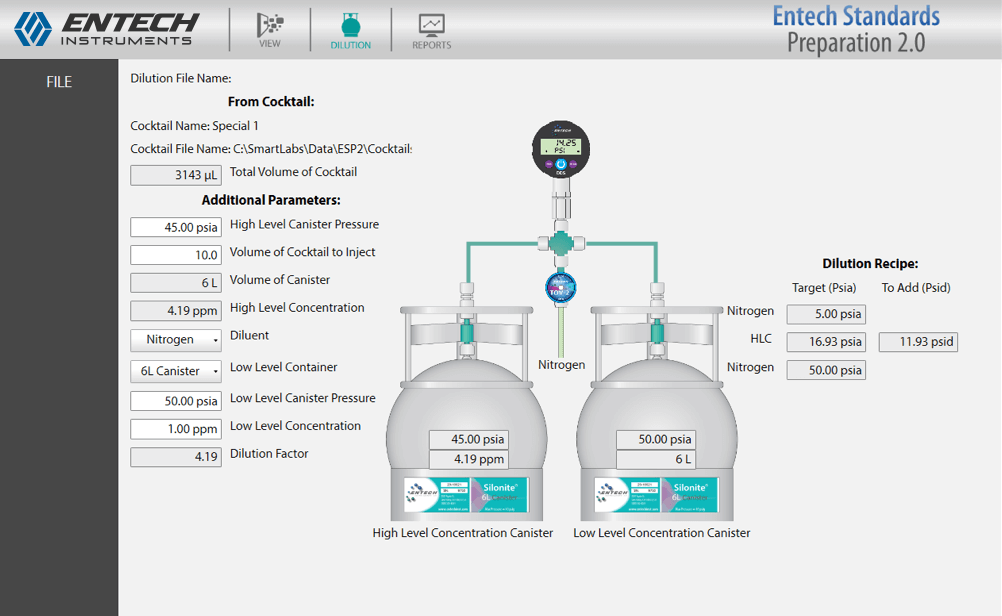

Dilution Calculator performs all calculations Resulting mixtures can be used directly on 4700 to make low level stds Complex Dilution Calculations Made Simple
Slide Entech ESP 2.0
Standard Prep Software

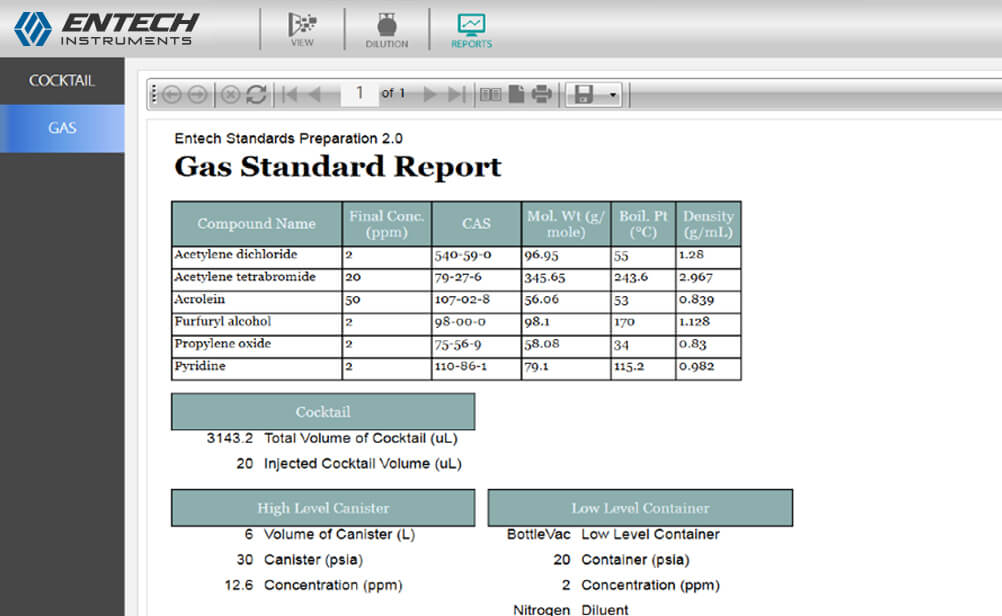

Report shows all final concentrations and standard creation date Final Report is Saved with Canister

More Accurate Than Dynamic Dilution Performs 2-10,000 Fold Dilutions!

  • Precise pressure measurement of each standard for accurate mass delivery to the receiving canister
  • Unlike Dynamic Dilution, a single sensor meters in all gases, cancelling out gain and zero errors
  • Always comes with 6 channels fully installed, with a re-dilution channel to make lower level standards.
  • Water is added manually to canisters (70ul), which is more accurate than using an online humidifier (4600A/D)

1000x Calibration Range using 4700 Prepared 0.4 PPB and 20PPB Standards

4700 Prepares the 20PPB standard from 1PPM cylinders, then re-dilutes the 20PPB standard further down to 0.4 PPB. The 7200 can take different volumes from each canister to dramatically increase the dynamic range while performing GCMS calibrations and method validations

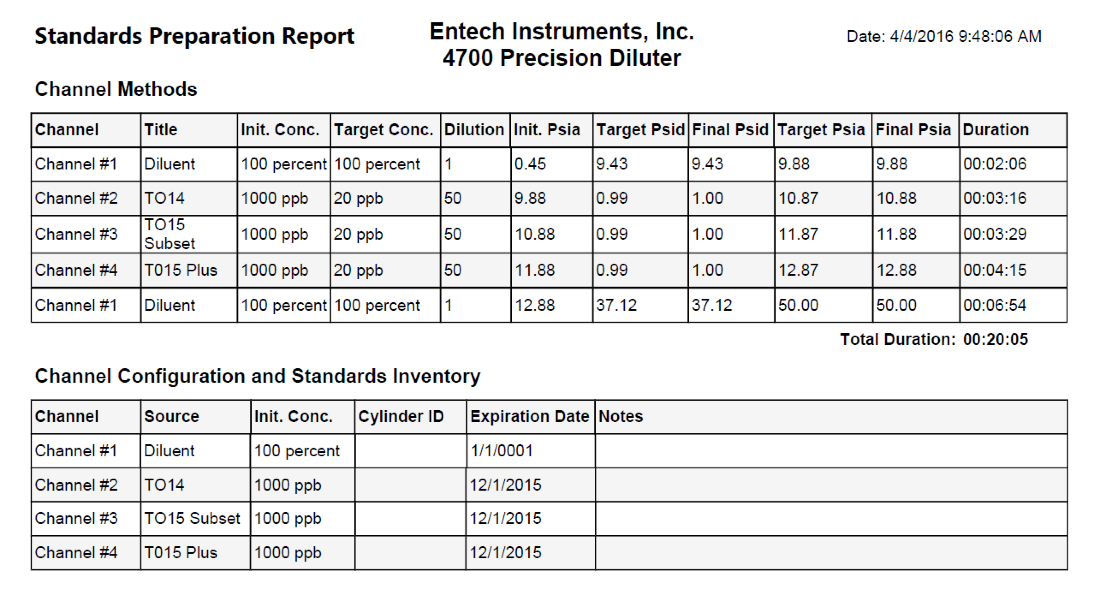

4700 Software – Dilution Report

Fully documents Standards Preparation with times and dates & Simplifies Calibration QA Strategies

4700 Precision Static Diluter Features

An optional digital scale can be used to validate dilution ratios gravimetrically, thus  eliminating any need for expensive annual sensor calibrations.

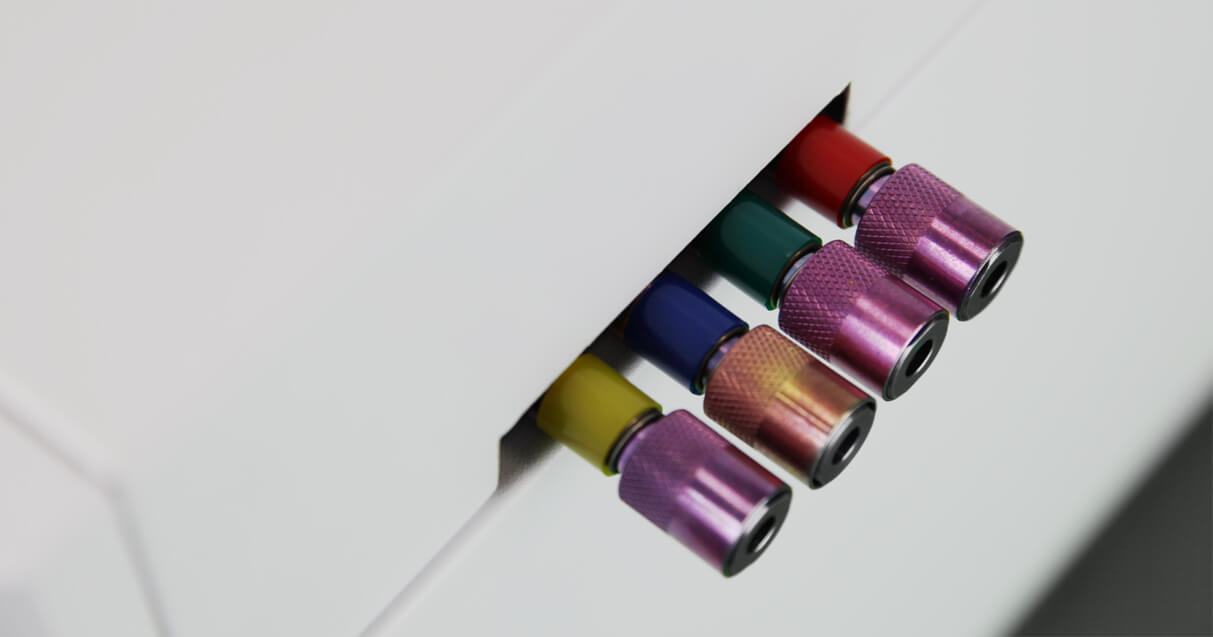

The 4700 comes standard with six channels.  This allows for dedicated ISTDs, CalSTDs, and  sample dilution channels.

The 4700 Precision Diluter  can easily perform 1–100x dilutions (100 PPB to 1 PPB), or dilutions up to 10,000x by using CH6…

The 4700 conserves cylinder standards relative to dynamic blending.

The 4700 can create 1 PPB challenge standards for 6L canister inertness validation tests. (One 102L cylinder fills 1800 6L canisters).

High concentration samples such as soil gas can be effortlessly diluted with the 4700.

How are you going to Show Compliance to the new US EPA Guidance Documents on Canister Analysis?

The current EPA NATTS Technical Assistance Document, and soon the updates to EPA Method TO15 require recovery testing of VOCs being reported through each sample train and canister on a periodic basis. Each sample train and canister must show >80% recovery of target compounds. Entech has an easy solution that provides a full 24-hour continuous challenge stream at low to sub-PPB levels through up to 5 samplers and canisters at a time. [expand title=”Read More” swaptitle=”Minimize”] That would be 25 sampling systems per week, or over 1000 complete systems a year using a single 4700. Just another example of how Entech is providing complete solutions to support air analysis laboratories, ensuring that canisters remain the Gold Standard of air analysis. Rely on Entech products to keep your air and soil gas monitoring solutions running smoothly.[/expand]

Download Brochure

The 4700 uses precise pressure control, rather than mass flow controllers to meter in the standard. This approach has several advantages. First, very little of the standard mix is used in making a standard. This allows the original cylinder to last longer, keeping cylinder pressures higher where contents are more stable. Secondly, the mixing region used in a dynamic diluter is eliminated, substantially reducing surface area and carryover.
