Advantages of Soil Gas Sampling with Canisters

Sampling soil gas into canisters provides significant advantages over the use of passive adsorbent samplers with regard to both maintaining the integrity of the sample in the field and ensuring that the best analytical technique is used in the laboratory.

Canisters eliminate the need for pumps, batteries, and media selection, and the same sampling approach can be utilized for any gas concentration while being universal for all compounds. Furthermore, humidity and temperature concerns inherent with tube sampling do not affect canister accuracy.

Entech has a long history of engineering turn-key solutions specific to the environments being sampled. Designed with feedback from numerous sampling professionals, the Chameleon provides an all-in-one solution that is changing the way soil gas studies are conducted world-wide.

Why utilize the Chameleon soil gas sampler for soil and vapor intrusion studies?

The Chameleon enhances soil gas sampling accuracy by employing fundamental gas chromatography principles. To obtain a representative vapor sample from the soil, it is crucial to modulate the sample flow rate in accordance with the soil’s diffusion rate. Failure to do so may result in soil study samples overly concentrating chemicals within the fastest diffusion pathways, leading to a potentially unrepresentative depiction of the area’s true chemical composition. This could introduce biases, skewing the results either too low or too high. The Chameleon is optionally equipped with a down-hole vacuum gauge which ensures that the flow rate is in line with a safe permeation rate for the given sampling location.

As importantly, sampling systems must be considered an extension of the laboratory. The Chameleon Soil Gas Sampler achieves this by;

• Ensuring all surfaces are inert using Entech Silonite™ coated stainless steel.
• Minimizing surface area and shortening path lengths to canister.
• Minimizing leak prone connections by providing custom engineered flow path connectivity solutions.
• Eliminating absorption (no plastic tubing where possible) .
• Proving the entire system is leak-tight before delivery to field.
• Isolating the flow path from the outside world during transportation.

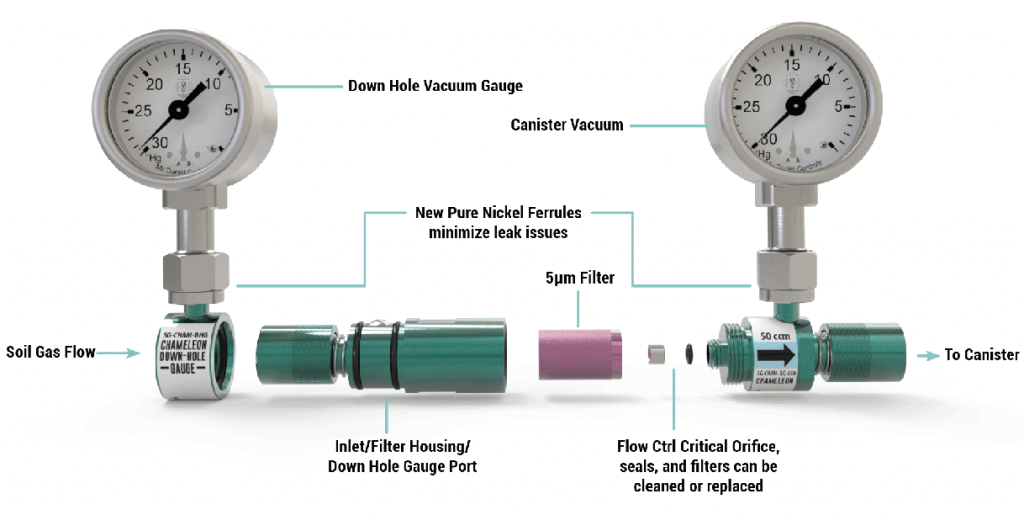

Easy Maintenance and Replacement of All Components



Optimized Soil Gas Sampling

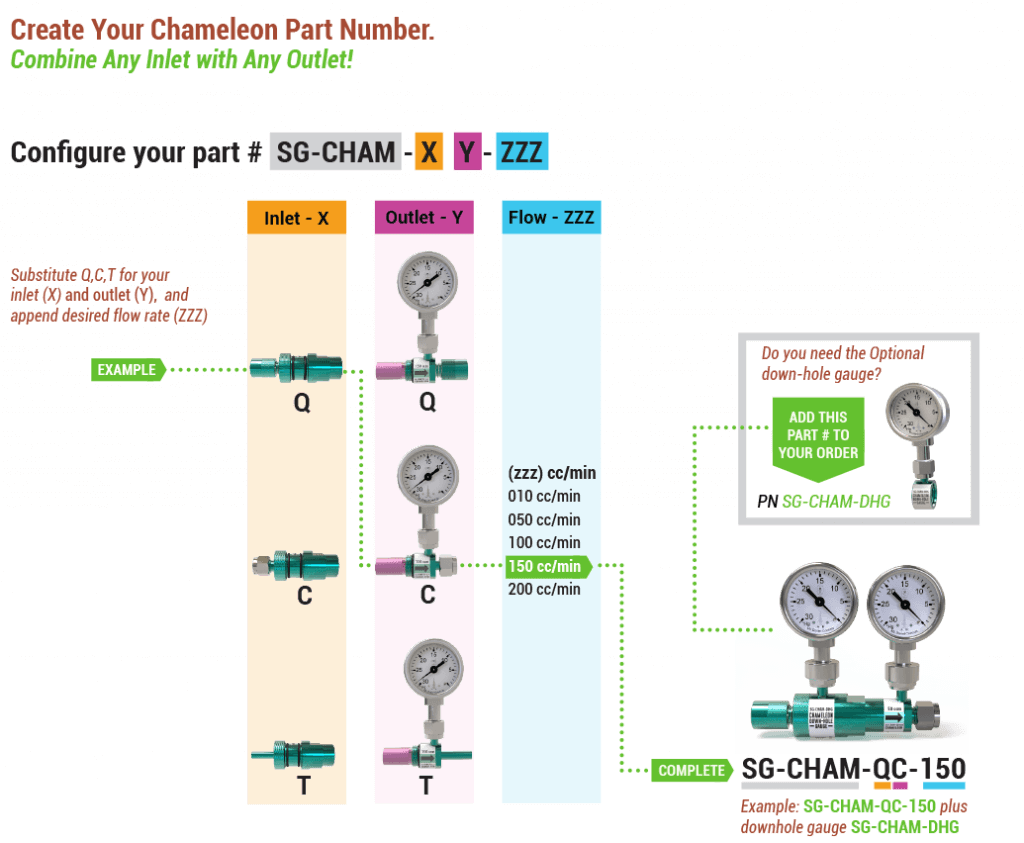

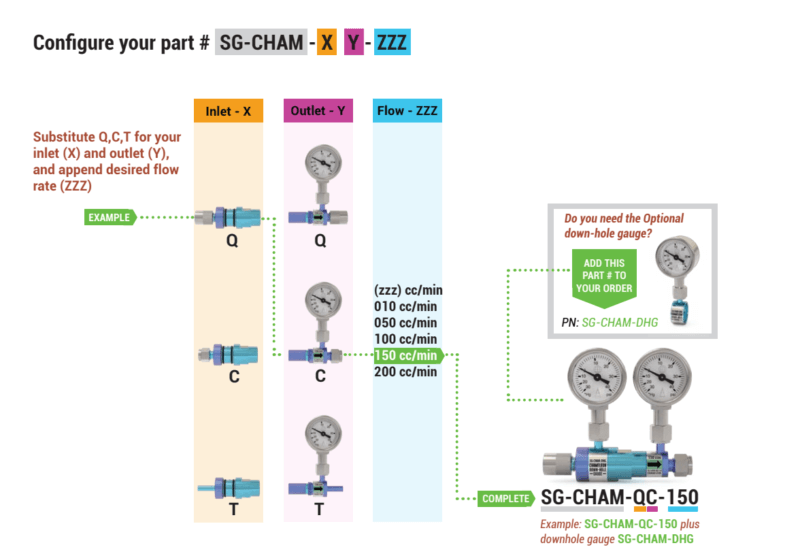

  • The Chameleon can be configured to minimize compression fittings based on the probe, line, or fitting to which it connects.
  • The inlet and outlet can be configured separately to optimize the sample train.
  • The down hole vacuum gauge monitor can be added to any configuration, and verifies that excessive vacuum is not forming in the soil (<7.3” Hg vacuum).
  • All configurations can be maintained under positive gas (N2) pressure during shipment to the field to perform the shut-in test (leak test) automatically.
  • Chameleons may be equipped with the popular Micro-QT fittings for quick-connections from the soil or slab interface to the canister.

Download The Entech Chameleon Soil Vapor Solutions Guide

Why Passive/Diffusion Samplers Hide The Real Picture

Example Use of Chameleon with A Tracer Gas Shroud

The Chameleon Soil Gas Sampler fits all your Soil Gas Sampling needs!

Vapor Intrusion / Sub-Slab Soil Gas Monitoring
Learn More
Permanent Well Soil Gas Monitoring
Learn More

CS1200E Indoor Air Quality Monitoring Solution

  • Industry standard for time integrated sampling, from 1 hour to 1 month!!
  • Proven recovery of low level TO15 compounds to sub-PPBv levels (Ap Note 2014-05).
  • Ultra low background, allowing measurements down to 10^-6 risk factors reliably, even for compounds requiring detection down to 2 part per trillion.
  • Tool-free operation when using Micro QT Valve Option.
  • Easy start/stop automation if needed with TM1200 Timer.
  • Now even better with improved Silonite™ coating!!

Chameleon Brochure

Sampling soil gas into canisters provides significant advantages over the use of passive adsorbent samplers with regard to both maintaining the integrity of the sample in the eld and ensuring that the best analytical technique is used in the laboratory.
