7200CTS (Column Trapping System)

Introducing The Cryogen-Free 7200CTS.

The Only Capillary Column Based TO15 Preconcentrator

Entech is proud to release the world’s first multi-capillary column trapping system (MCCTS) patent pending, for the precise concentration of vapor phased volatile chemicals in the  boiling point range of -50°C to >230°C without the need for liquid nitrogen or complicated electronic cooling. With over 28 years of continued improvements and industry feedback, the  7200CTS is as established and reliable as it is new and improved. Many of the important advancements that have led to its unparalleled reproducibility, such as quantitative volumetric  measurements utilizing “Accu-Sample Technology,” and digital valve isolation, are left unchanged from the 7200. The core trapping system, however, has been completely reengineered,  giving way to a technology that will likely replace the utilization of packed traps for most, if not all methods requiring the preconcentration of vapor phase volatile organic compounds.

“One of The Biggest Technological Leaps the TO15 Market Has Ever Seen.”
“A Game Changer For All Environmental Labs.”

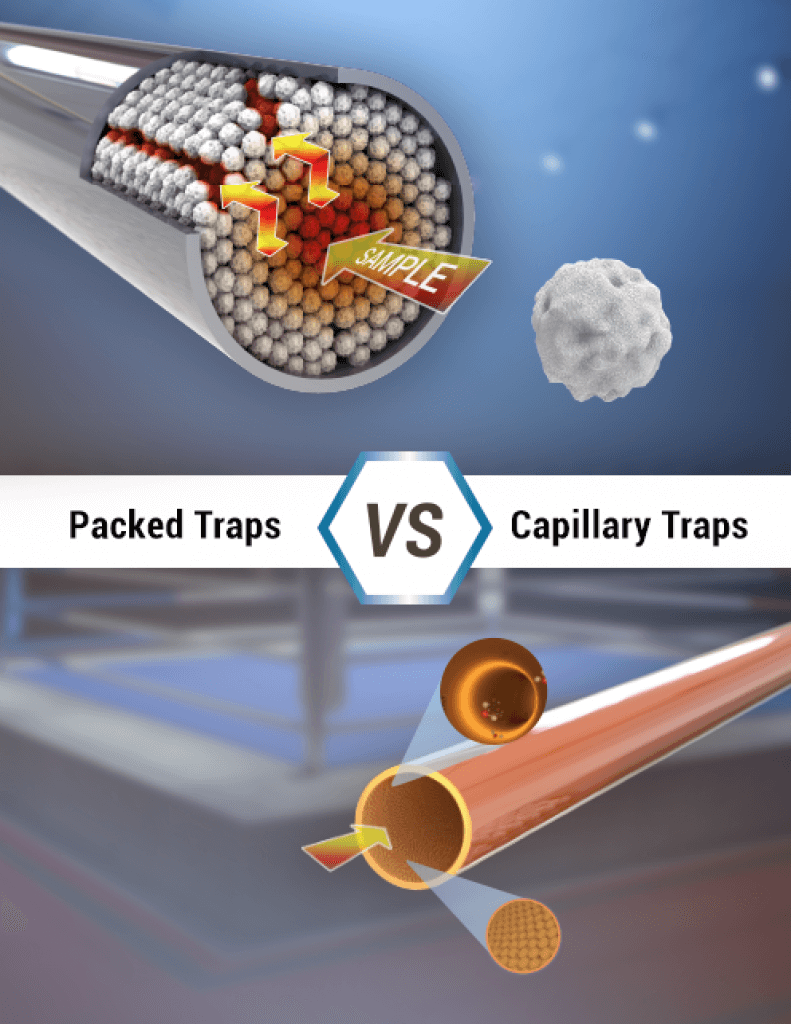

How do you choose a preconcentrator? Cryogen-Free vs Cryogen?

Preconcentrator Feature Comparison

FEATURES
7200CTS
Cryogen-Free Preconcentrator
7200A
Accelerated Preconcentrator
Design & Performance Specs
Compatible Boiling Point Range
-50°C to >230°C
-105°C to >250°C
Compatibility Range By Carbon Number
C3 to C20
C2 to C14
Primary Trapping System
Multi-Capillary Column Trapping
Packed Traps (Adsorbent, Glass Bead) Open Silonite Column
Focusing Trap
Multi-Capillary Column Trap
Cryofocusing on Unpacked Silonite Tube
Trap Operating Temp
35 to +220°C
-190 to +230°C
Precision
±3% when sampling over 50 mls of sample
±3% when sampling over 50 mls of sample
Detection Limits for EPA Method TO15 Compounds * MS Dependant
0.05 PPBv *
<0.05 PPBv *
Coolant / Cooling System
Fan Cooled
Liquid Nitrogen, 20-60psig
Sample Introduction Volume
1cc to 250cc
1cc to 1000cc
Sample Pressure
10 - 50 psia
10 - 50 psia
Complete Cycle Time
30 min
22 - 30 min
Dynamic Range
Sub-PPB to PPM
PPT to PPM
Polar Compounds
Yes (No Formaldehyde)
Yes
Sulfur Compounds
Yes (No H2S)
Sub PPB using ECTD
Water Removal Efficiency
99%
95 to 97%
Features & Capabilities
Accelerated Analysis
Microscale Purge & Trap
Extended Cold Trap Dehydration
Automated Standards Addition
High CO2 Samples
Accu-Sample Technology
Digital Valve Isolation
Loop Injection Valve
Yes - Included (0.5-2cc) 1cc Typical
Yes - Included (0.5-2cc) 1cc Typical
Pressure / Vacuum Leak Test Prior to Opening
Built-In Sample Ports
4
4
Mass Flow Controllers
No
No
Compatibility
Primary Sampling Media
Canisters, Mini-Cans, Bottle-Vacs, Tedlar Bags
Canisters, Mini-Cans, Bottle-Vacs, Tedlar Bags
Helium Diffusion Samplers (HDS)
Yes (w/7650)
Yes (w/7650)
Thermal Desorption Tubes
Yes, (w/5400)
Yes, (w/5400)
Autosampler Support
All 7650, 7016D, 7032A/D
All 7650, 7016D, 7032A/D
Autosampler Connections
Up to 3
Up to 3
Methods
TO-14A, TO-15, LL-TO-15, HJ759 TO-17, ASTM 5466, PV2120, OSHA 1021
TO-14A, TO-15, LL-TO-15, HJ759 TO-17, ASTM 5466, PV2120, OSHA 1021
Operating Platform
SmartLab 2
SmartLab 2
Operating System
Windows 7, 10
Windows 7, 10
Operating Specifications
Power
1200W
1200W
Voltages
120VAC / 60Hz, 230-240VAC / 50Hz
120VAC / 60Hz, 230-240VAC / 50Hz
Operating Environment
10 - 28°C
10 - 30°C
Outputs
Isolated Contact Closures 2 TTL level optoisolated open-collector outputs as start signals for GC Start
Isolated Contact Closures 2 TTL level optoisolated open-collector outputs as start signals for GC Start
Inputs
Accepts switch closures or open-collector inputs for GC
Accepts switch closures or open-collector inputs for GC
Gases
UHP Helium or Nitrogen (10psig)(w/7650) Air/N2 (30psig)
UHP Helium or Nitrogen (10psig)(w/7650) Air/N2 (30psig)
Weighted Comparison & Special Features
Compound Compatibility Range
Good
Best
Cost of Operation
Best
Elimination of Cryogen Saves Money Less GCMS Maintenance
Better
Uses 30% Less Liquid Nitrogen than 7200
System Hygiene
Best
Unparalled Hygiene & Uptime - Virtually no trap carry-over
Better
Accu-Sample Technology / Valve Isolation Extended Tenax Trap Backflush Bakeout
Water Management / Humid Samples
Best
Near complete elimination of water
Better
ECTD, MPT, Dry Purge+ SmartSplit Water Management (3X Reduction of Water to GCMS)
Cycle Time
Better
Best
Under 25 minutes injection to injection for soil gas or low level ambient or indoor air.
Physical Properties
Weight
33-40 lbs (120VAC), 46-52 lbs (240V)
35-42 lbs (120VAC), 48-54 lbs (240V)
Dimensions
9.5” Wide, 18” Tall, 22.5” Deep
9.5” Wide, 18” Tall, 22.5” Deep

Take full advantage of section 179 tax benefits. Deduct the full purchase price of qualifying equipment purchased or financed during the tax year. This is the perfect end of year addition to your laboratory.

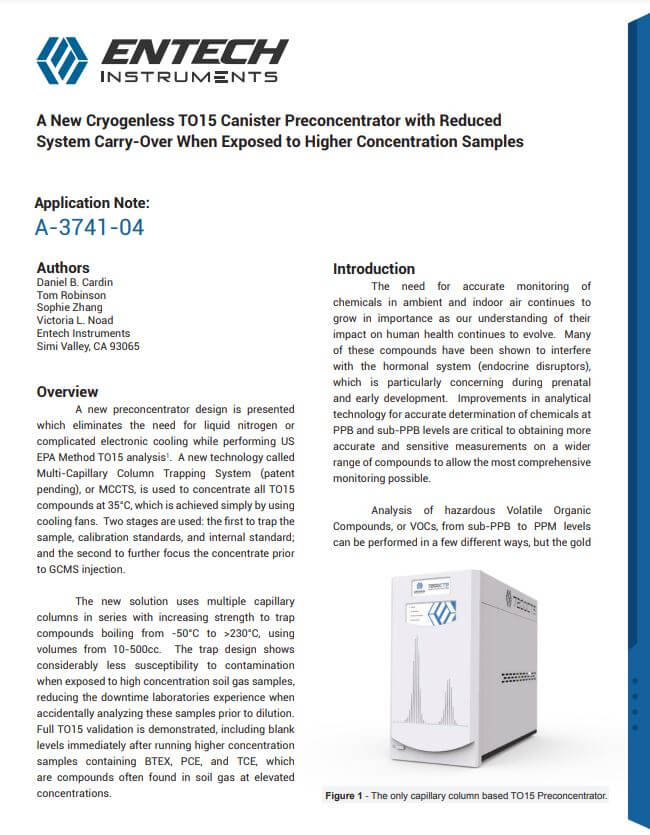

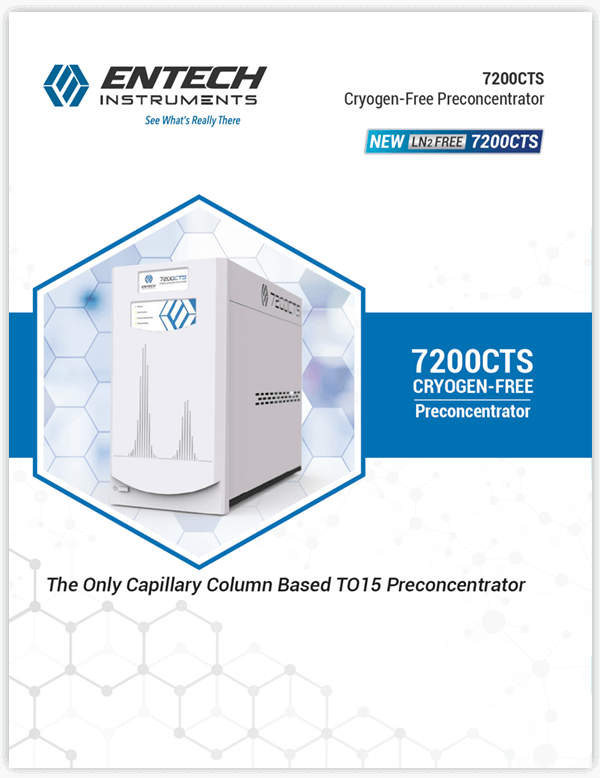

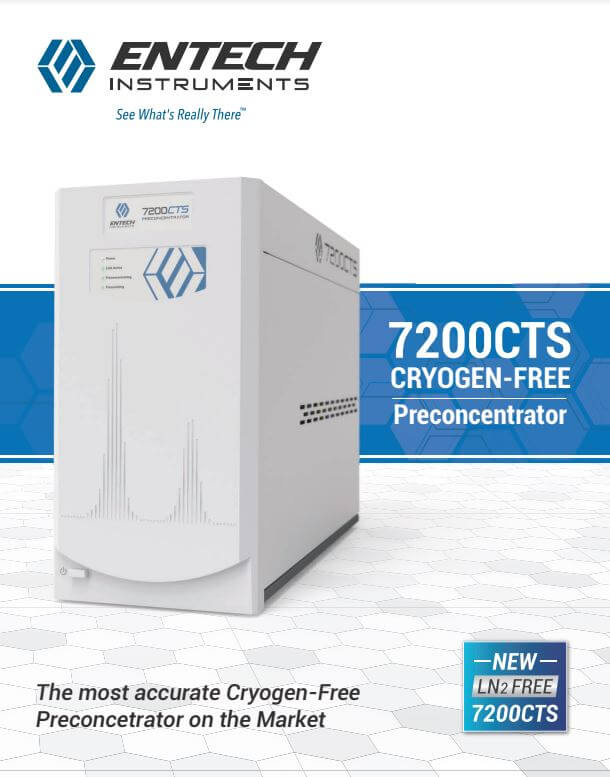

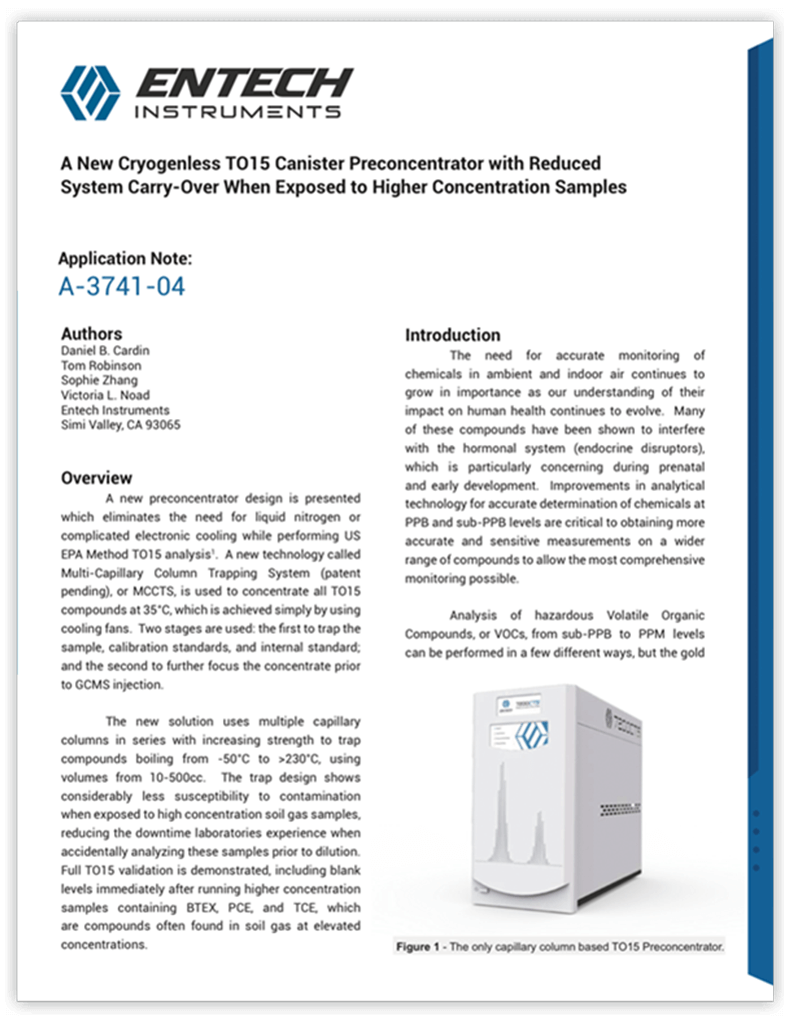

Brochures & Application Notes
