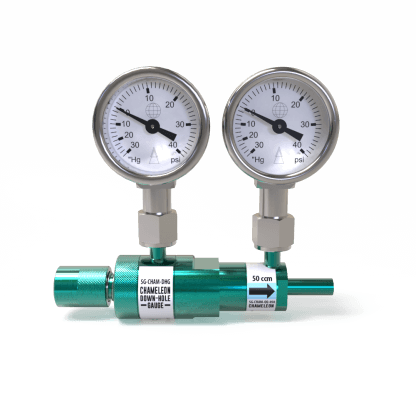

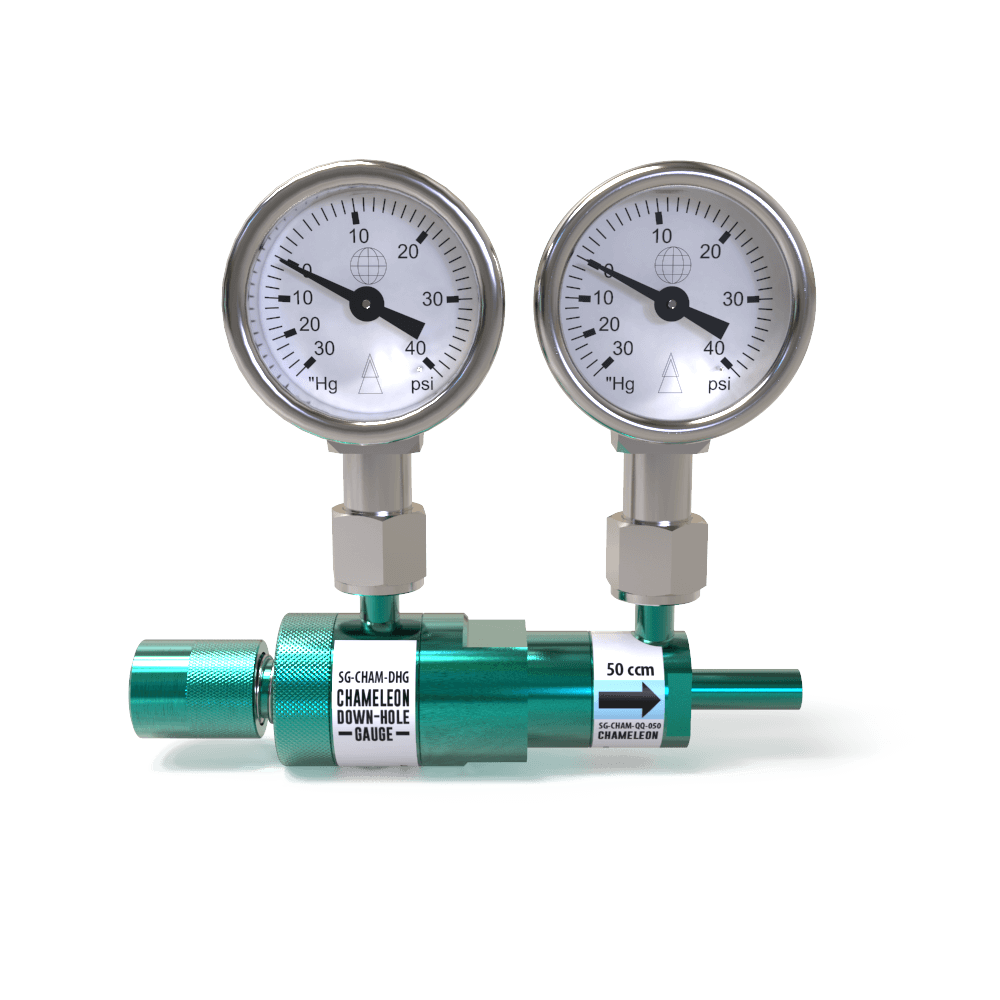

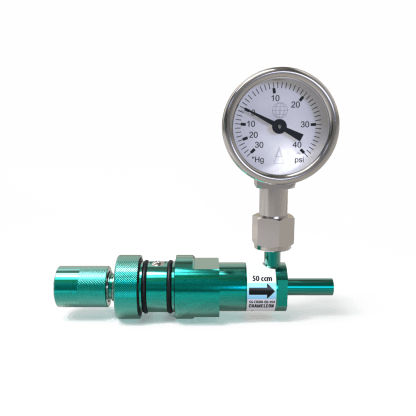

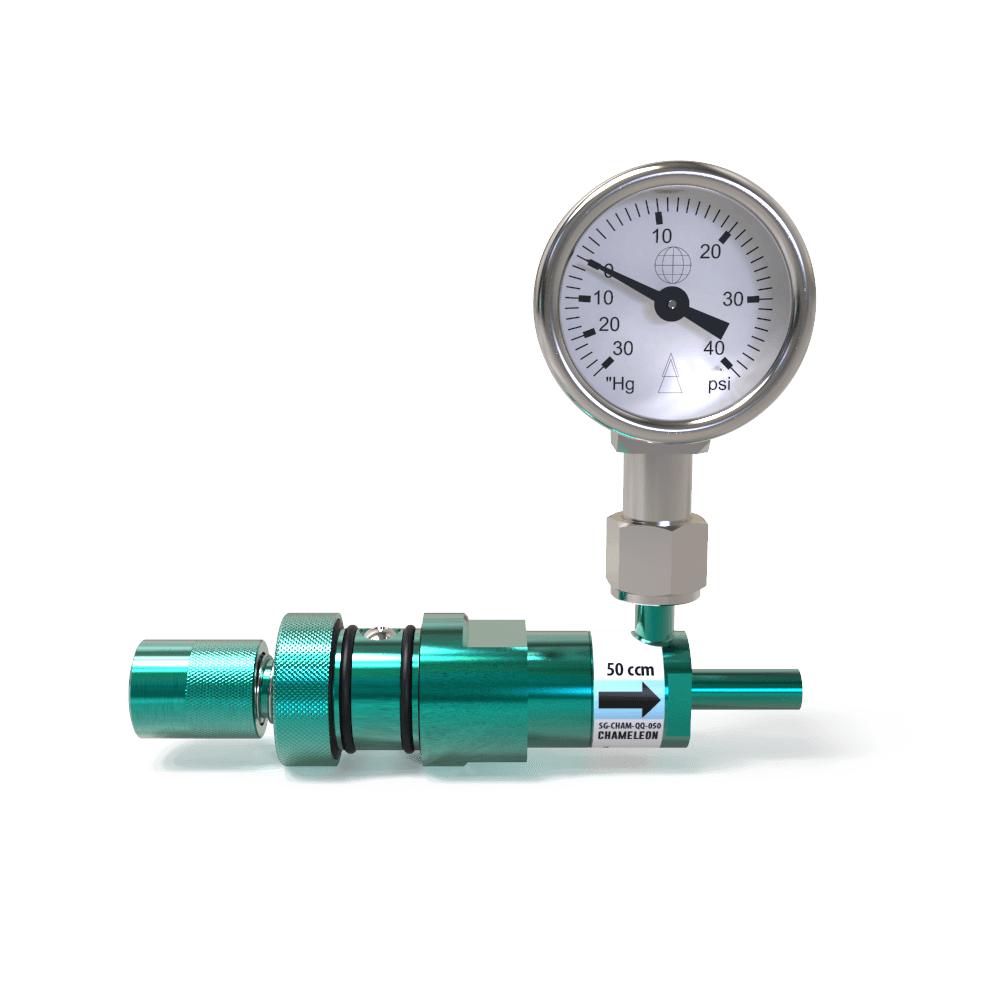

Chameleon Soil Gas Sampler
50-cc/min Flow Rate – Female Micro-QT Inlet to 1/4″ Tube Outlet Connections.
- The Chameleon can be configured to minimize compression fittings based on the probe, line, or fitting it needs to connect to
- The inlet and outlet can be configured separately to optimize the sample train
- The down hole vacuum gauge monitor can be added to any configuration, and verifies that excessive vacuum is not forming in the soil (<7.3” Hg vacuum)
- All configurations can be maintained under vacuum during shipment to the field to perform the shut-in test (leak test)automatically
