200cc/min, ?” Compression Fit

Register to request quotes or place orders

200cc/min, ?” Compression Fitting Inlet/?” Compression Fitting Outlet, filter, orifice, 30″Hg-0-40PSIG Gauge Assembly.
DOES NOT INCLUDE DOWN-HOLE GAUGE ASSEMBLY.

Product Description

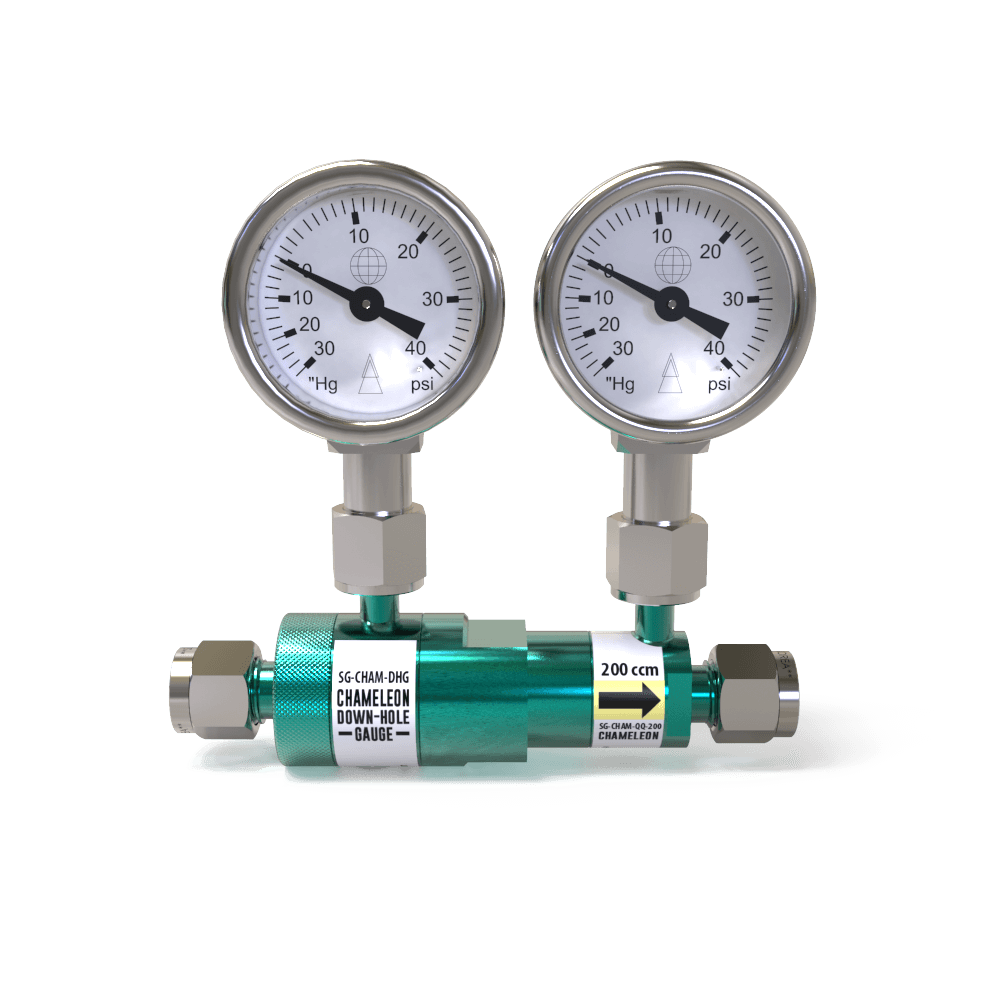

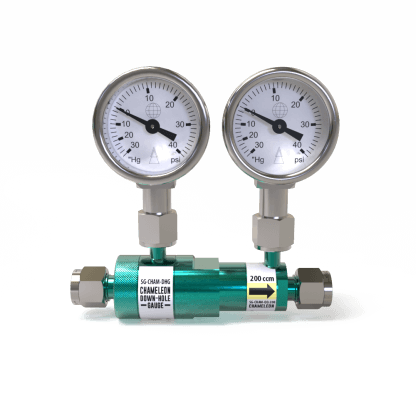

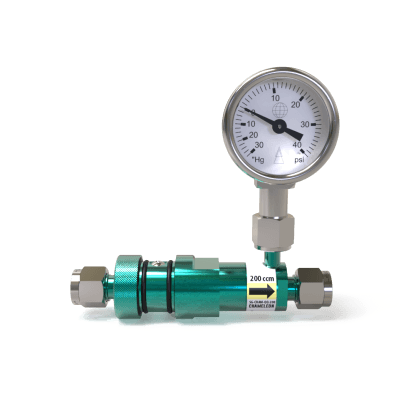

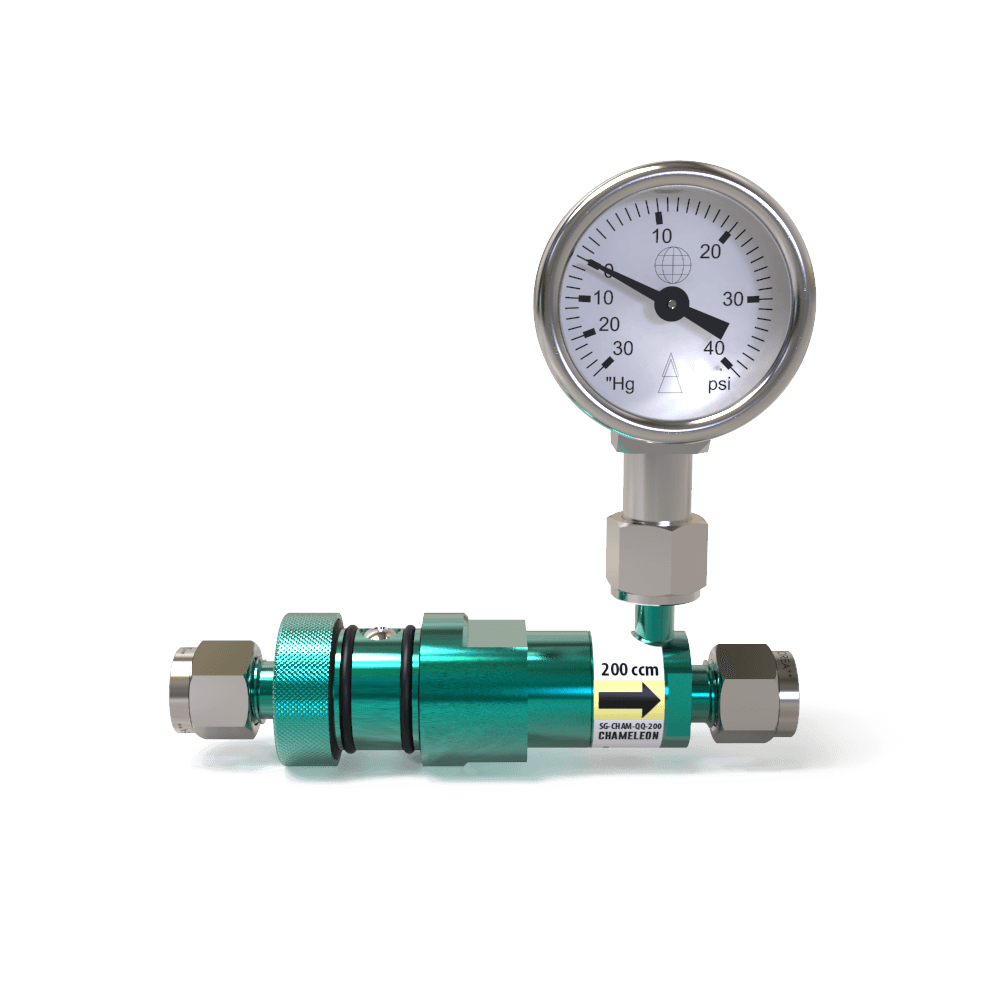

Chameleon Soil Gas Sampler

200-cc/min Flow Rate -1/4″ Compression Fitting Inlet to Compression Fitting Outlet Connection.

  • The Chameleon can be configured to minimize compression fittings based on the probe, line, or fitting it needs to connect to
  • The inlet and outlet can be configured separately to optimize the sample train
  • The down hole vacuum gauge monitor can be added to any configuration, and verifies that excessive vacuum is not forming in the soil (<7.3” Hg vacuum)
  • All configurations can be maintained under vacuum during shipment to the field to perform the shut-in test (leak test)automatically

Additional Information

Weight 1 lbs
Flow Rate

200cc/Min

Chameleon Soil Gas
