10cc/min, Female MQT Inlet/1/4″ Compression Fitting

10cc/min, Female MQT Inlet/1/4″ Compression Fitting, filter, orifice, 30″Hg-0-40PSIG Gauge Assembly.
DOES NOT INCLUDE DOWN-HOLE GAUGE ASSEMBLY.

Product Description

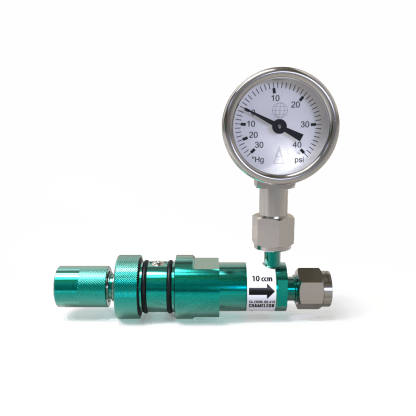

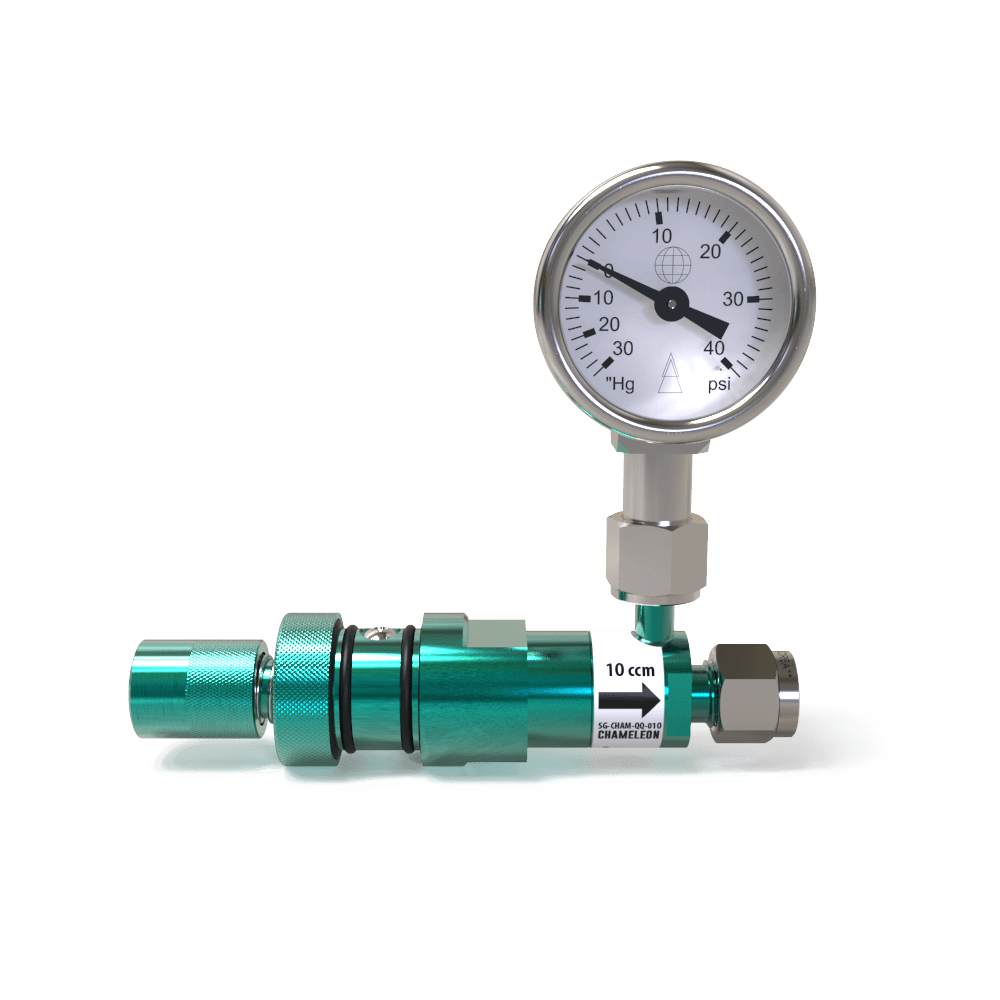

Chameleon Soil Gas Sampler

10-cc/min Flow Rate – Female Micro-QT Inlet to 1/4″ Compression Fitting Outlet Connections.

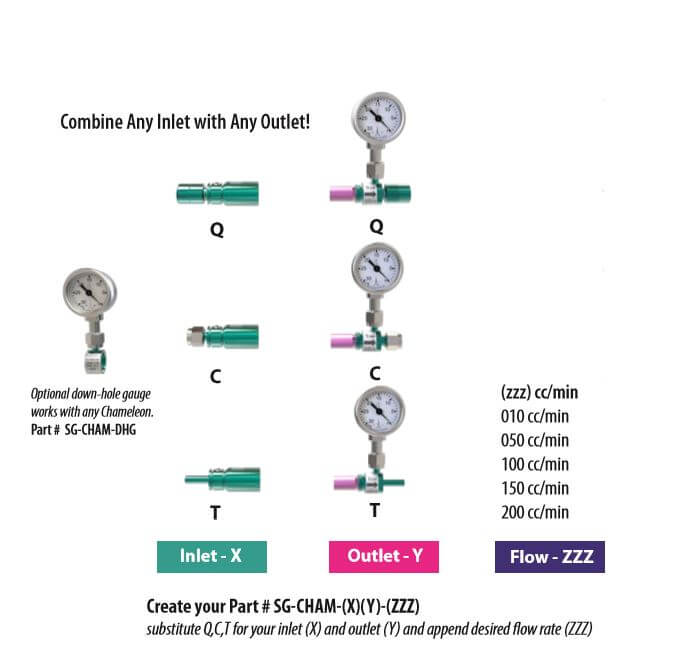

  • The Chameleon can be configured to minimize compression fittings based on the probe, line, or fitting it needs to connect to
  • The inlet and outlet can be configured separately to optimize the sample train

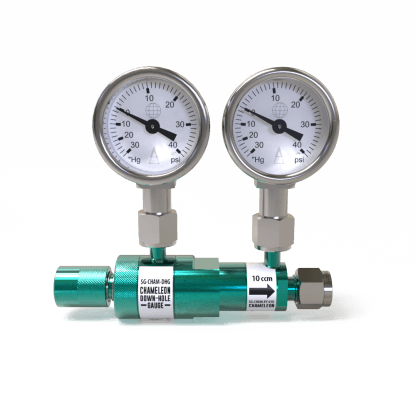

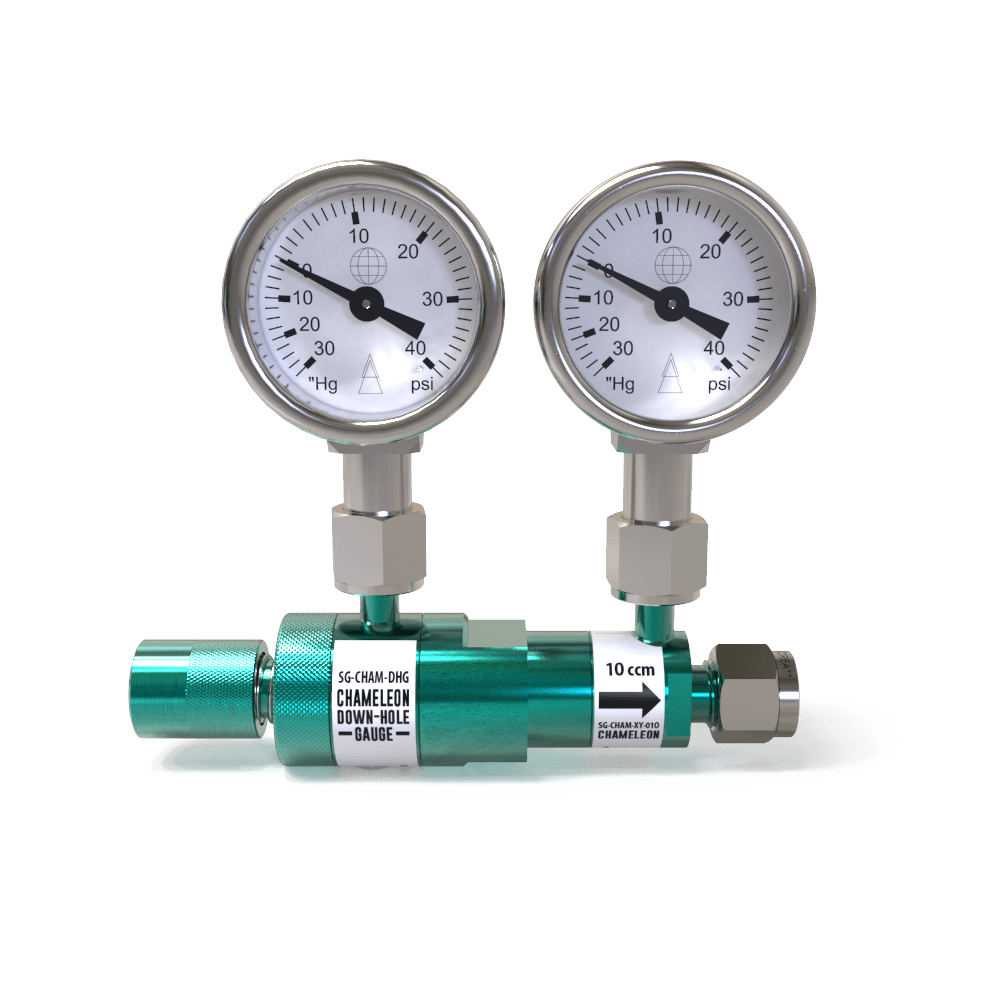

  • The down hole vacuum gauge monitor can be added to any configuration, and verifies that excessive vacuum is not forming in the soil (<7.3” Hg vacuum)
  • All configurations can be maintained under vacuum during shipment to the field to perform the shut-in test (leak test)automatically

Additional Information

Weight 1 lbs
Flow Rate

010 cc/Min

Product Line

SG

Valve Option

MicroValves/Quick Connect

Chameleon Soil Gas
