microvalve

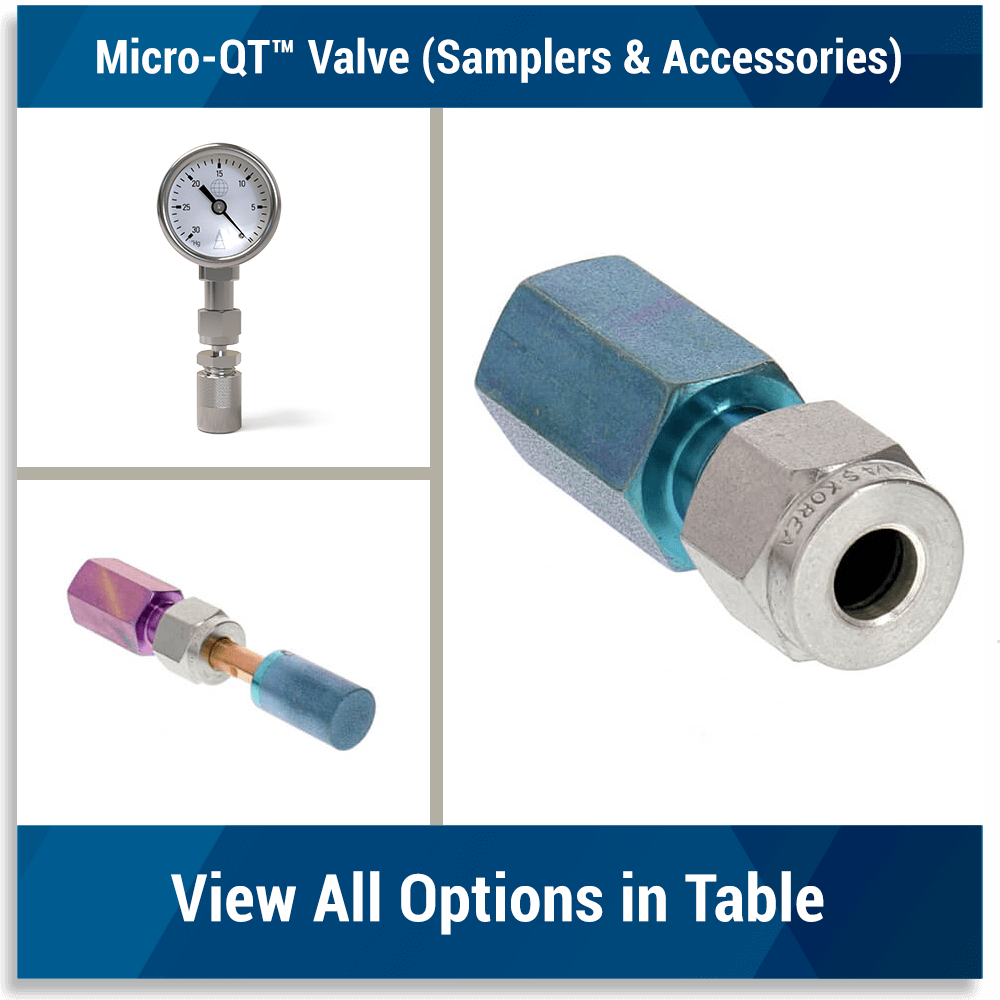

Micro-QT Valve (Samplers & Accessories)
Add to quote

All listed products are compatible with both QT and QT2 Valves.

** Replace “x” with code for desired fill time. See table below.

SKU: 01-MVG Orifice Categories: , , , , ,

Additional Information

Weight 1 lbs
Unit

EA

Time to Fill MiniCans

Fill to 50% and 95% of Atmospheric Pressure (in Minutes)

Part No. Code Approx. Flow Rate 450mL MiniCanTM 600mL MiniCanTM 1L MiniCanTM 1.4L MiniCanTM
50% 95% 50% 95% 50% 95% 50% 95%
30-22510 0 No Restrictor <0.1 <0.1 <0.1 <0.1 <0.1 <0.1 <0.1 <0.1
39-RS-QT1 1 600cc/Min * * * * 1 3 1.3 4
39-RS-QT2 2 150cc/Min 1 3 2 6 3 10 5 15
39-RS-QT3 3 63cc/Min 3 10 5 15 8 25 10 30
39-RS-QT4 4 38cc/Min 5 15 8 25 12 40 15 45
39-RS-QT6 5 19cc/Min 10 30 15 50 25 75 35 100
39-RS-QT6 6 13cc/Min 15 45 25 70 40 120 60 170

*These canister / flow combinations are not recommended by Entech Instruments, Inc.
