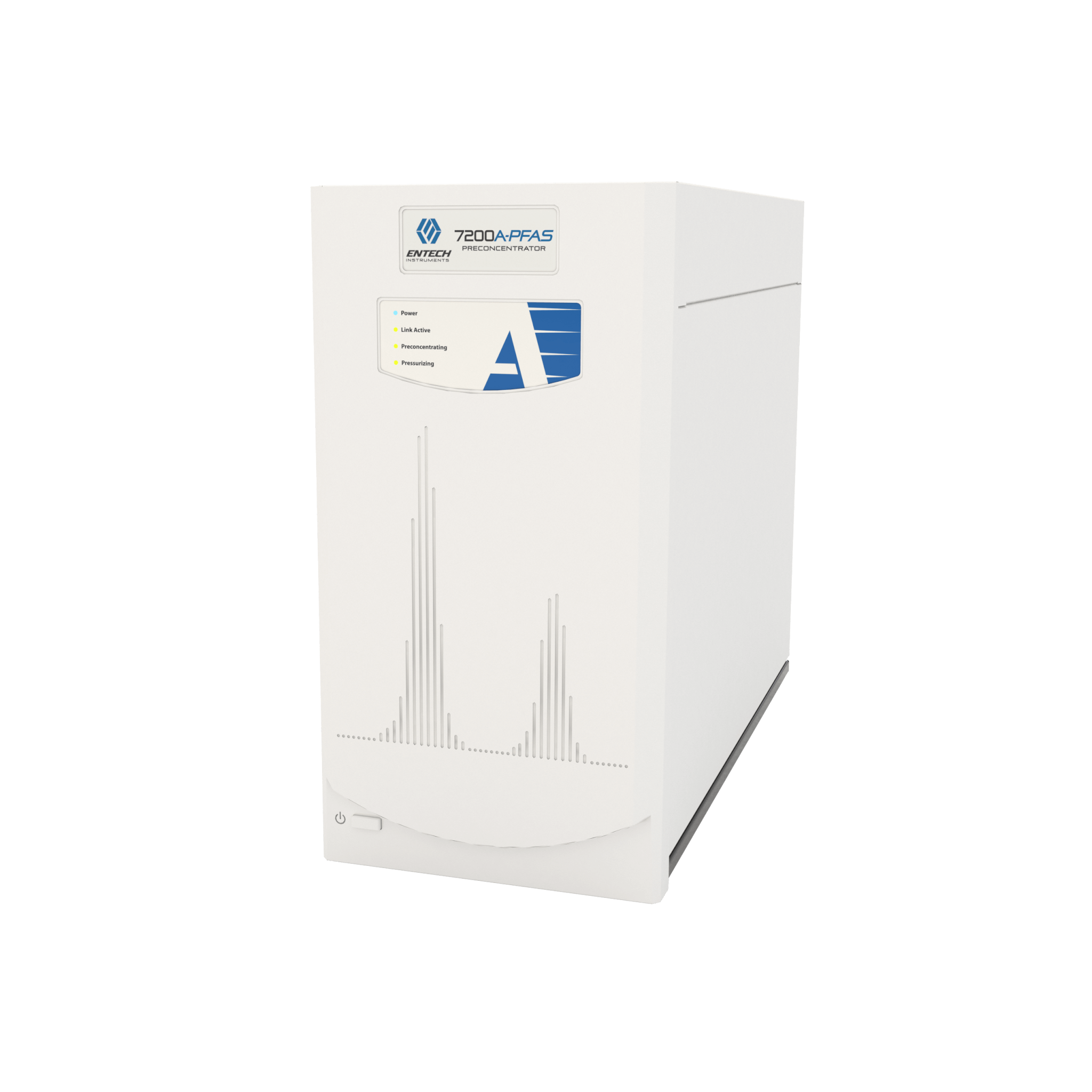

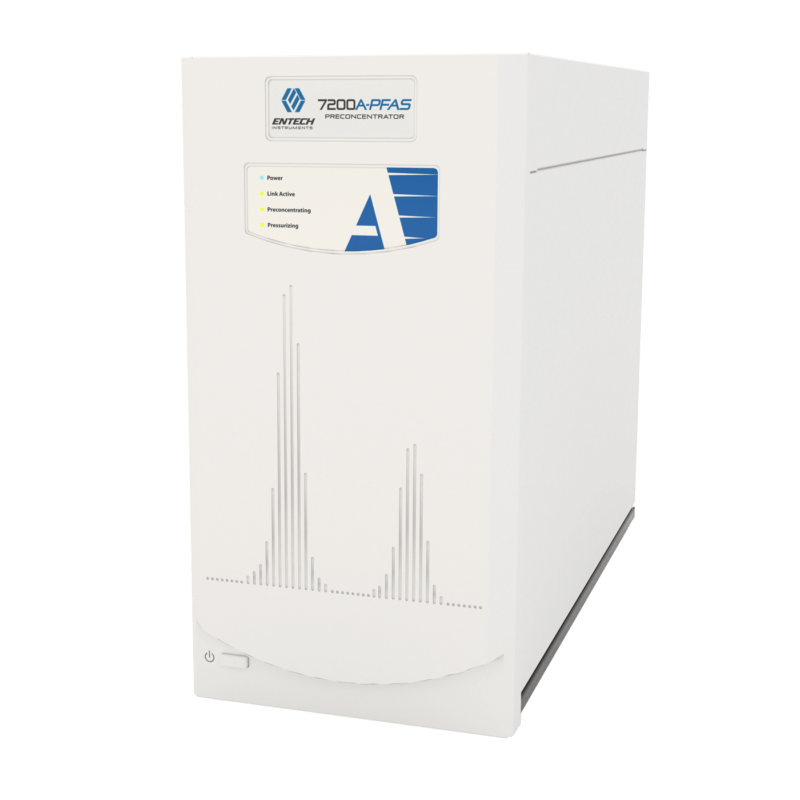

7200A-PFAS System

Analysis of PFAS and Volatile Fluorinated Compounds in Industrial and Environmental Air

OTM-50 is a draft analytical method developed by the U.S. EPA to identify and quantify volatile fluorinated compounds (VFCs) emitted from stationary sources. Air samples are collected in evacuated canisters and analyzed by gas chromatography–mass spectrometry (GC-MS).

This method plays a critical role in verifying the destruction of per- and polyfluoroalkyl substances (PFAS) in high-temperature treatment systems such as incinerators. When PFAS compounds are not fully mineralized, they can break down into lighter volatile byproducts—many of which are toxic or persistent in the environment.

Originally designed to evaluate PFAS destruction efficiency, OTM-50 is now being explored for broader use in industrial emissions testing and ambient air monitoring. Its compound list includes 30 VFCs, ranging from ultra-volatile species like CF₄ to more complex fluorinated organics, providing a detailed chemical fingerprint of incomplete PFAS combustion.

OTM-50

Why It Matters Now

Why Monitor PFAS in Air?

PFAS and VFCs are:

  • Highly mobile and easily transported through the atmosphere
  • Released during industrial processes, combustion, and product degradation
  • Not effectively captured by legacy methods designed for heavier, less volatile compounds

As understanding of inhalation risk grows, airborne PFAS monitoring is rapidly becoming a regulatory priority.

Why Choose the Entech 7200A-PFAS Preconcentrator?

  • Recovers all OTM-50 compounds, including ultra-volatiles like CF₄
  • Complete recovery of all 30 OTM-50 compounds in a single 200cc run
  • Eliminates CO₂ through a unique heart-cutting process
  • Achieves low ppt sensitivity on modern GCMS and GCMSMS platforms
  • Uses liquid nitrogen traps for fast cooldown and high throughput
  • Includes a Heavy Organics Guardian (HOG) to protect GasPro columns
  • Seamlessly integrates with Entech autosamplers including SkyCan and 7016D
  • Fully compliant with OTM-50

Entech provides a complete OTM-50 Solution

.StepEntech InnovationKey Benefit

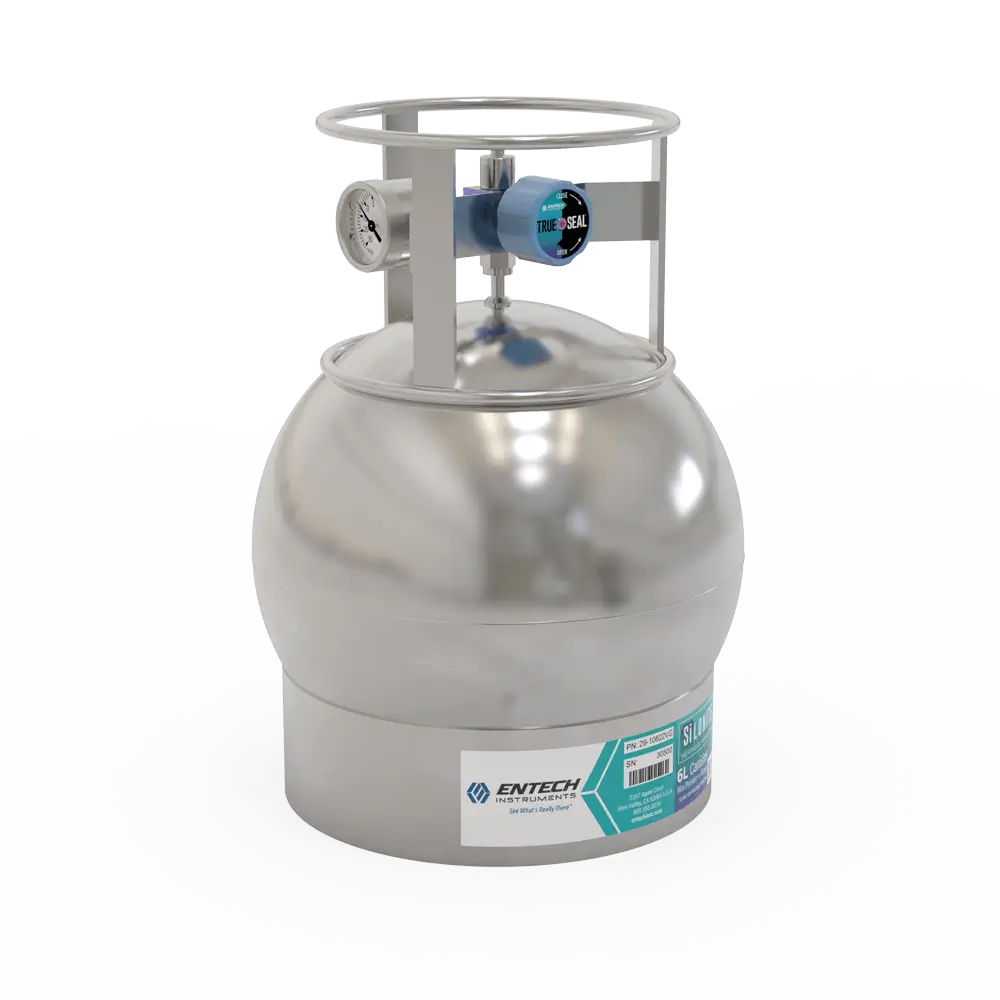

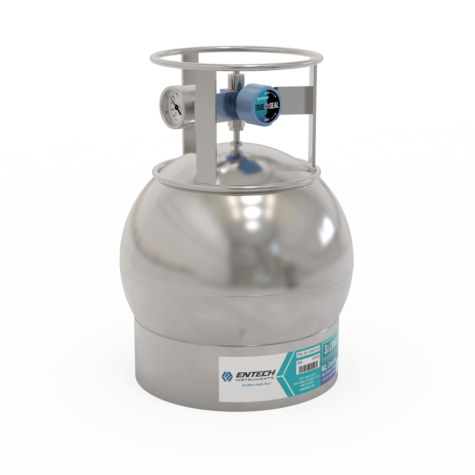

29-10622VG-2Sample CollectionSilonite Canisters for Sample CollectionClean, artifact-free sampling with method-compliant fill control

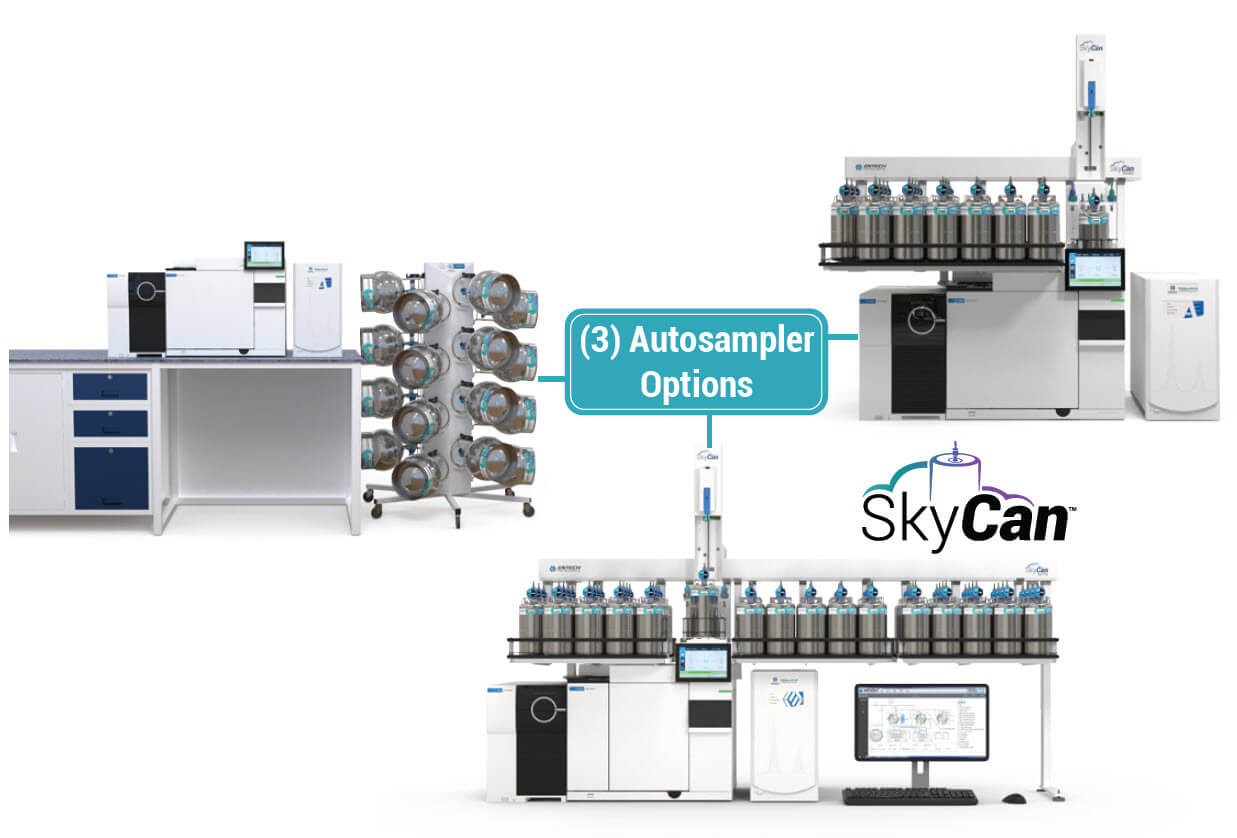

3-Autosampler OptionsAutosampler IntegrationSkyCan (SK40, SK75) or 7016D+Scalable automation for unattended analysis of up to 60 canisters

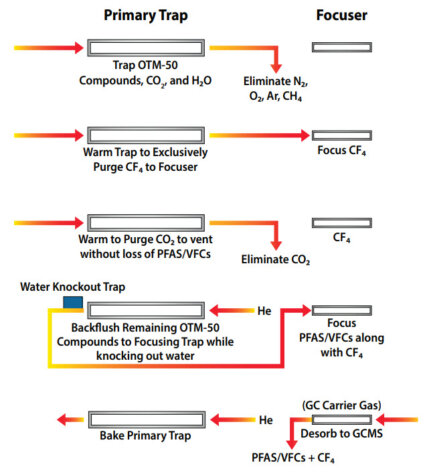

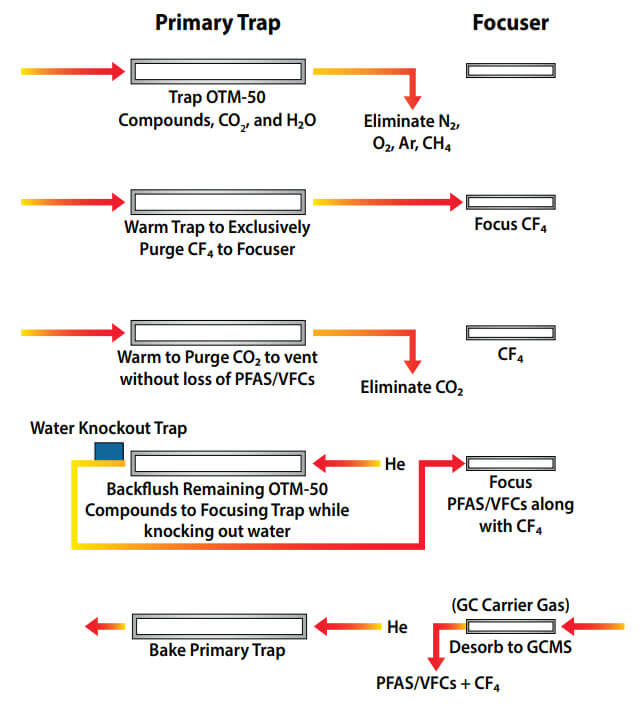

Advanced Preconcentration of OTM50 compoundsCO₂ ManagementPatented Heart-Cut Process in 7200A-PFASRemoves high levels of CO₂ without losing any PFAS or VFC targets
waterknockoutWater EliminationSub-zero Knockout TrapsDew point reduction to -20°C preserves column integrity and improves precision

Autosampler Compatibility and Throughput

To ensure consistent results and minimal carryover, Entech recommends a minimum 1.4L canister size for ambient PFAS analysis. The 7200A-PFAS supports three autosampler options:

Each option is fully integrated with the SL2+ platform for synchronized preconcentration, GCMS injection, and pressure tracking.

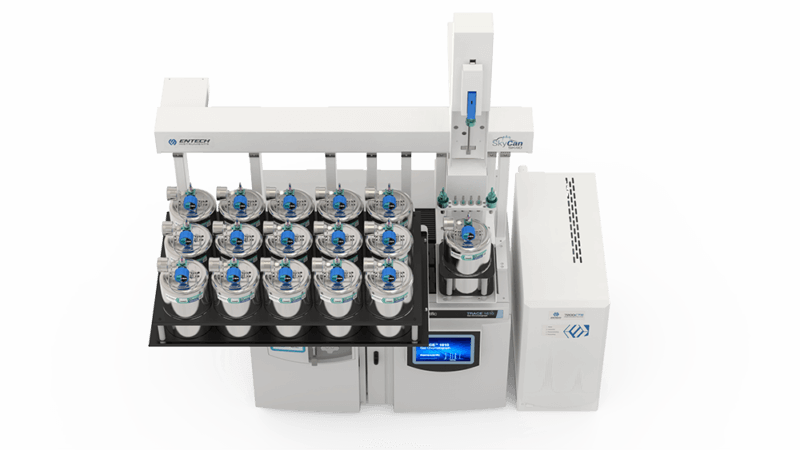

SkyCan 40 (SK40)

Up to 28 1.4L or 15 2.5L canisters. Ideal for compact labs or targeted deployments.

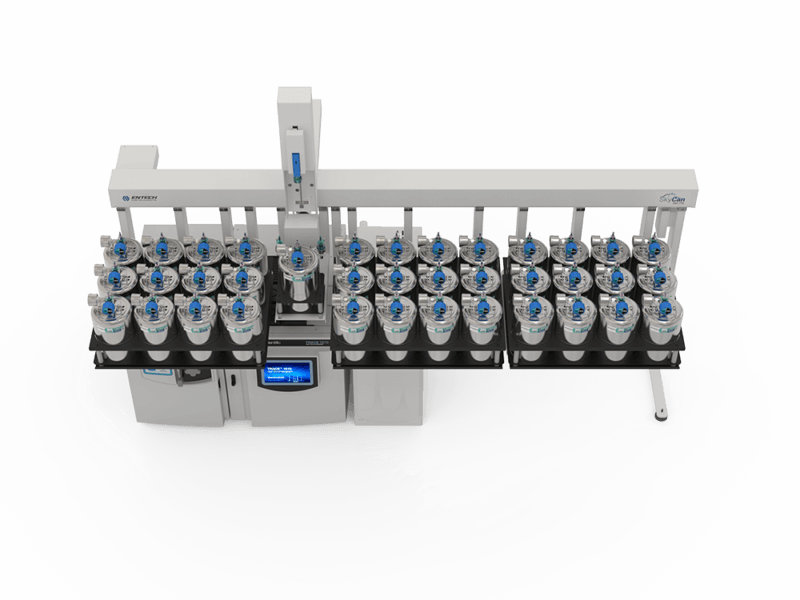

SkyCan 75 (SK75)

Handles up to 60 1.4L or 36 2.5L canisters. Designed for large-scale, unattended analysis.

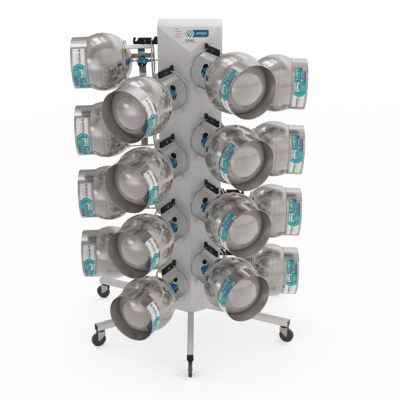

7016D+ Autosampler

A 16-position tower for 6L canisters, perfect for stack gas and legacy workflows.

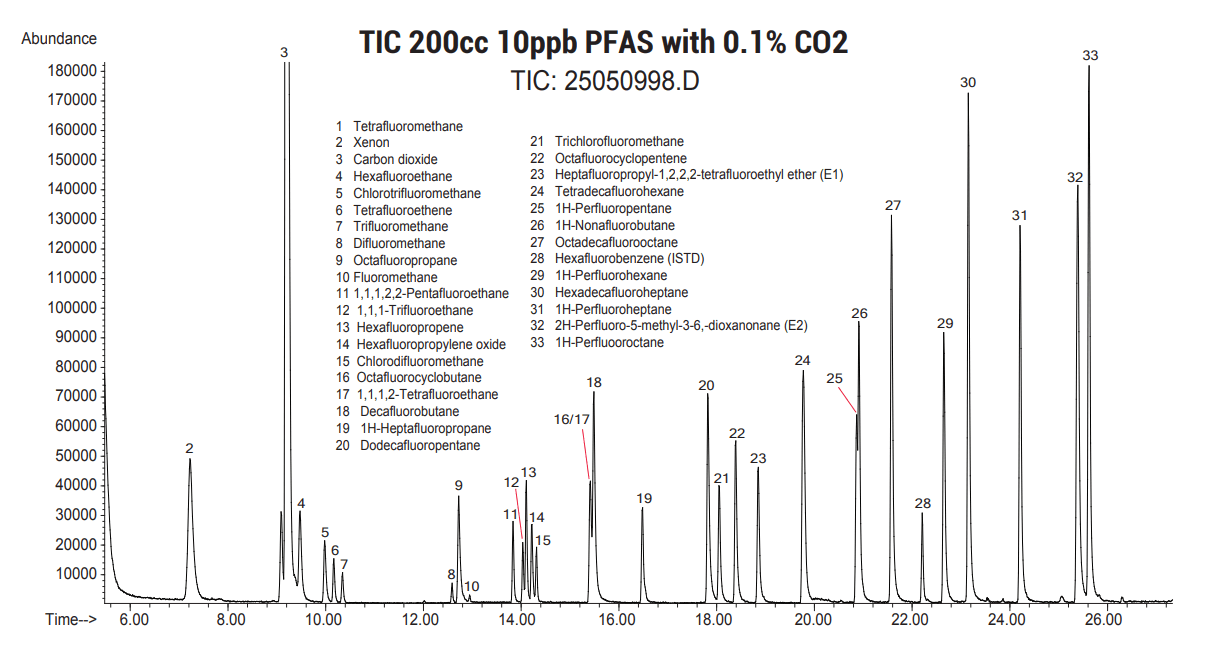

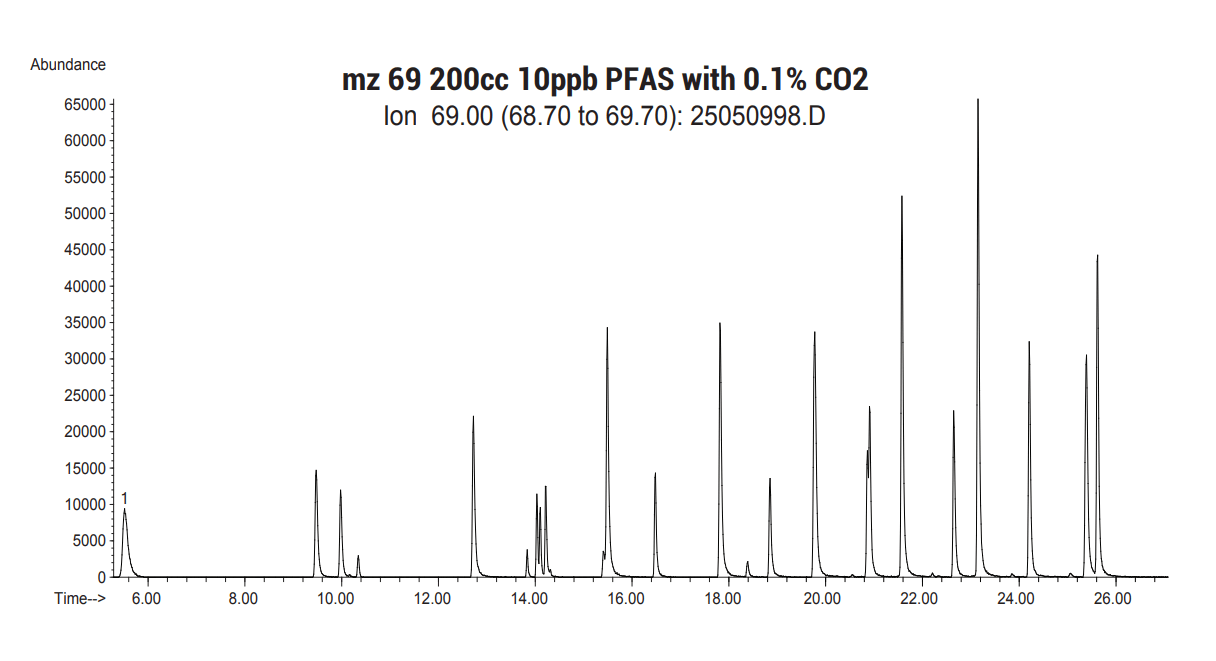

7200A-PFAS Chromatograms

What Makes the 7200A-PFAS Unique

  • null
    Captures all OTM-50 analytes including CF₄ and C₂F₆ in one run
  • null
    Processes samples with up to 4% CO₂ and high relative humidity
  • null
    LN₂ cooling enables cycle times 3–4 times faster than Peltier-based systems
  • null
    Heavy Organics Guardian (HOG) prevents contamination from C9–C16 residues
  • null
    Eliminates dual-run requirements often needed in competing systems
  • null
    Low-ppt detection demonstrated using SIM/SRM with modern MS platforms

Applications Beyond Stack Monitoring

  • Fenceline monitoring

    around industrial or incineration sites

  • Ambient air studies

    in rural, urban, or downwind zones

  • Indoor air quality

    assessments in homes, offices, or schools

  • Post-fire and disaster response

    air screening

  • Technology validation

    for PFAS destruction systems

  • Baseline and longitudinal research

    into environmental PFAS exposure

null

Future-Proof Your PFAS Air Monitoring Program

OTM-50 compliance is just the beginning. The 7200A-PFAS enables regulatory-grade monitoring across real-world air environments, delivering unmatched automation, sensitivity, and sample integrity.
Be ready for where PFAS monitoring is going.

Start with Entech

Download Technical Information

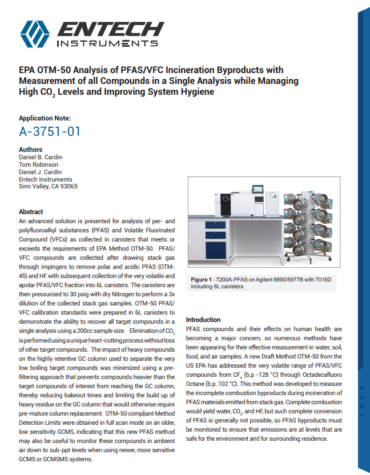

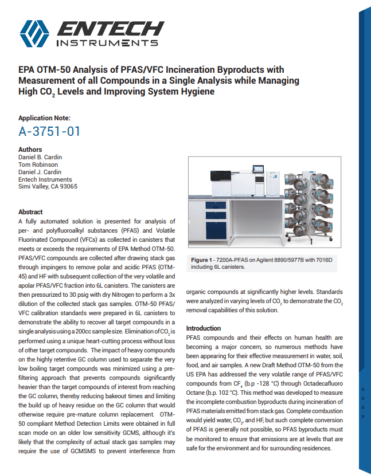

Download Application Note
