Linearity and Precision beyond belief. 3-7% RSDs across concentration ranges of 200-1000x is the new norm!!

Analyze vapor-phase volatile compounds with unmatched precision.

The 7200 Preconcentrator represents the next generation in GCMS sample preparation systems for the analysis of vapor-phase volatile compounds. The 7200 takes the industry standard, 7100A’s 3-stage preconcentration and water management technology, and elevates it to a whole new level. Many of the past limitations often seen in rotary valve based devices are now eliminated by combining digital valve isolation control with advanced robotic autosamplers, dropping the potential for carryover and cross-contamination far below previously obtainable levels.

Popular Applications

How do you choose a preconcentrator? Cryogen-Free vs Cryogen?

Features At A Glance

Silonite-D® provides amazing inertness and durability you can trust!

U2lsb25pdGUtRCUyNiUyM3gyMTIyJTNCJTIwQ29hdGVkJTIwRmxvdyUyMFBhdGhz

Superior volume measurement at 10cc volumes, while reducing cross contamination and carryover.

accusample-digvalveaccusample-directvol

QWNjdS1TYW1wbGUlMjYlMjN4MjEyMiUzQiUyMFRlY2hub2xvZ3k=

Volumes from 1–1000cc. Digital flow path management for improved system hygiene and precise volume determination of complex gas matrices including: Landfill Gas, Helium Diffusion Sampling, High Methane, and more!

UXVhbnRpdGF0aXZlJTIwTWVhc3VyZW1lbnRz

Calibrate over a factor of 1000X while meeting EPA linearity requirements. This means fewer reruns.

VWx0cmEtV2lkZSUyMENhbGlicmF0ZWQlMjBEeW5hbWljJTIwUmFuZ2U=

Supports extended cold trap dehydration, microscale purge & trap, and dry purge water management techniques for unrivaled flexibility and maximum compound class recovery.

RUNURCUyMCUyRiUyME1QJTI2YW1wJTNCVCUyMCUyRiUyMERyeSUyMFB1cmdl

All-new cryo-modules and external bulkhead heaters reduce cold spots, improving performance. Easy access for component replacement.

QWR2YW5jZWQlMjBNb2R1bGFyJTIwRGVzaWdu

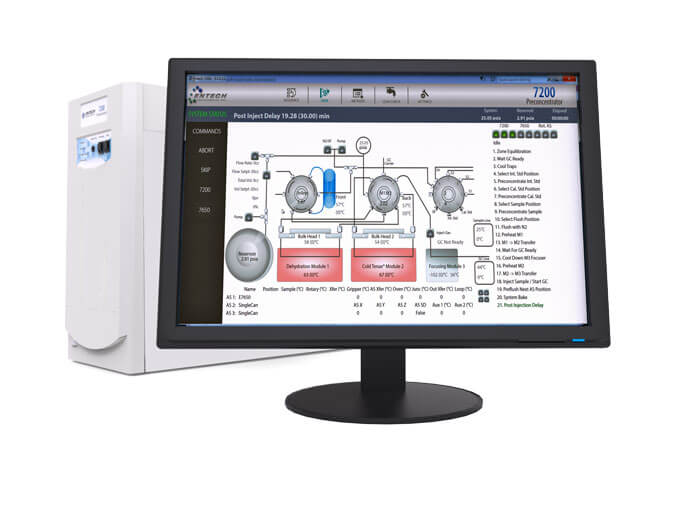

Powerful & Intuitive Software

The 7200 comes equipped with tools for validating system performance, including the ability to perform automated leak checking and matrix spiking. Critical parameters are recorded during each sample preconcentration to verify proper system operation, such as trapping flow rates, flow volumes, trap pressure drop, trapping temperatures, water management parameters and much more. Data is stored for easy integration with Laboratory Information Management Systems (LIMS).

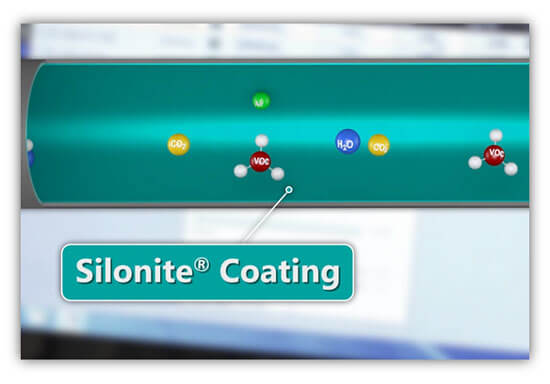

Ultra-Inert Flow Paths

A Silonite-D™ coated flow path throughout the 7200 virtually eliminates unwanted chemical reactions, ensuring complete recovery of volatile and light semi-volatile compounds.

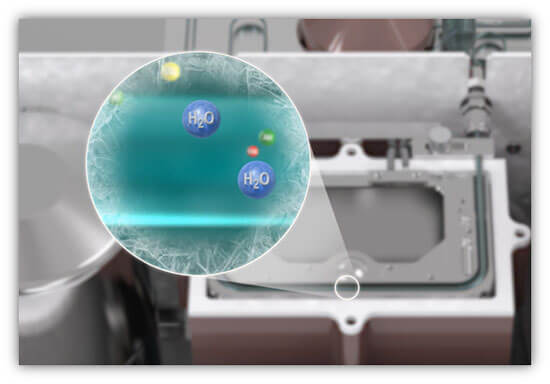

Advanced Water & COManagement

The 7200’s advanced water & CO2 management technologies provide superior recovery of polar and non-polar organics, while the inert heated flow path allows analysis of hydrocarbons in the range of C2 – C18

Accu-Sample™ Technology

Accu-Sample technology combines digital valve control with direct volume measurement rather than indirect time integrated flow measurements to allow better small volume accuracy down to 10cc over a wider pressure range while allowing air and non-air matrices to be analyzed accurately.

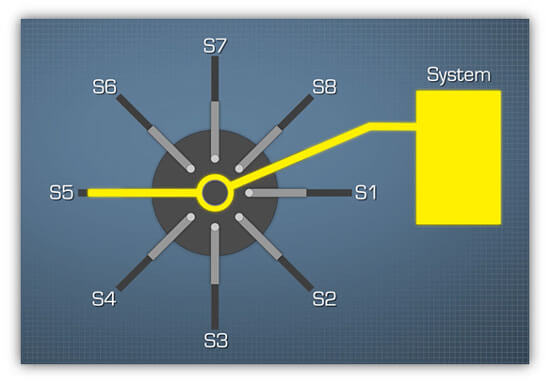

rotary-valves

PHOTOS & VIDEO

Preconcentrator Feature Comparison

FEATURES
7200
Preconcentrator
7200CTS
Cryogen-Free Preconcentrator
7200A
Accelerated Preconcentrator
Design & Performance Specs
Compatible Boiling Point Range
-105°C to >250°C
-50°C to >300°C
-105°C to >250°C
Compatibility Range By Carbon Number
C2 to C14
C3 to C20
C2 to C14
Primary Trapping System
Packed Traps (Adsorbent, Glass Bead) Open Silonite Column
Multi-Capillary Column Trapping
Packed Traps (Adsorbent, Glass Bead) Open Silonite Column
Focusing Trap
Cryofocusing on Unpacked Silonite Tube
Multi-Capillary Column Trap
Cryofocusing on Unpacked Silonite Tube
Trap Operating Temp
-190 to 230°C
35 to +220°C
-190 to +230°C
Precision
±3% when sampling over 50 mls of sample
±3% when sampling over 50 mls of sample
±3% when sampling over 50 mls of sample
Detection Limits for EPA Method TO15 Compounds * MS Dependant
<0.05 PPBv *
0.05 PPBv *
<0.05 PPBv *
Coolant / Cooling System
Liquid Nitrogen, 20-60psig
Fan Cooled
Liquid Nitrogen, 20-60psig
Sample Introduction Volume
1cc to 1000cc
1cc to 250cc
1cc to 1000cc
Sample Pressure
10 - 50 psia
10 - 50 psia
10 - 50 psia
Complete Cycle Time
45 - 60 min
30 min
22 - 30 min
Dynamic Range
PPT to PPM
Sub-PPB to PPM
PPT to PPM
Polar Compounds
Yes
Yes (No Formaldehyde)
Yes
Sulfur Compounds
Sub PPB using ECTD
Yes (No H2S)
Sub PPB using ECTD
Water Removal Efficiency
90 to 95%
99%
95 to 97%
Features & Capabilities
Accelerated Analysis
Microscale Purge & Trap
Extended Cold Trap Dehydration
Automated Standards Addition
High CO2 Samples
Accu-Sample Technology
Digital Valve Isolation
Loop Injection Valve
Yes, Optional (0.5-2cc) 1cc Typical
Yes - Included (0.5-2cc) 1cc Typical
Yes - Included (0.5-2cc) 1cc Typical
Pressure / Vacuum Leak Test Prior to Opening
Built-In Sample Ports
4
4
4
Mass Flow Controllers
No
No
No
Compatibility
Primary Sampling Media
Canisters, Mini-Cans, Bottle-Vacs, Tedlar Bags (w/7032)
Canisters, Mini-Cans, Bottle-Vacs, Tedlar Bags
Canisters, Mini-Cans, Bottle-Vacs, Tedlar Bags
Helium Diffusion Samplers (HDS)
Yes (w/7650)
Yes (w/7650)
Yes (w/7650)
Thermal Desorption Tubes
Yes, (w/5400)
Yes, (w/5400)
Yes, (w/5400)
Autosampler Support
All 7650, 7016D, 7032A/D
All 7650, 7016D, 7032A/D
All 7650, 7016D, 7032A/D
Autosampler Connections
Up to 3
Up to 3
Up to 3
Methods
TO-14A, TO-15, LL-TO-15, HJ759 TO-17, ASTM 5466, PV2120, OSHA 1021
TO-14A, TO-15, LL-TO-15, HJ759 TO-17, ASTM 5466, PV2120, OSHA 1021
TO-14A, TO-15, LL-TO-15, HJ759 TO-17, ASTM 5466, PV2120, OSHA 1021
Operating Platform
SmartLab 2
SmartLab 2
SmartLab 2
Operating System
Windows 7, 10
Windows 7, 10
Windows 7, 10
Operating Specifications
Power
1200W
1200W
1200W
Voltages
120VAC / 60Hz, 230-240VAC / 50Hz
120VAC / 60Hz, 230-240VAC / 50Hz
120VAC / 60Hz, 230-240VAC / 50Hz
Operating Environment
10 - 30°C
10 - 28°C
10 - 30°C
Outputs
Isolated Contact Closures 2 TTL level optoisolated open-collector outputs as start signals for GC Start
Isolated Contact Closures 2 TTL level optoisolated open-collector outputs as start signals for GC Start
Isolated Contact Closures 2 TTL level optoisolated open-collector outputs as start signals for GC Start
Inputs
Accepts switch closures or open-collector inputs for GC
Accepts switch closures or open-collector inputs for GC
Accepts switch closures or open-collector inputs for GC
Gases
UHP Helium or Nitrogen (10psig)(w/7650) Air/N2 (30psig)
UHP Helium or Nitrogen (10psig)(w/7650) Air/N2 (30psig)
UHP Helium or Nitrogen (10psig)(w/7650) Air/N2 (30psig)
Weighted Comparison & Special Features
Compound Compatibility Range
Best
Good
Best
Cost of Operation
Good
Best
Elimination of Cryogen Saves Money Less GCMS Maintenance
Better
Uses 30% Less Liquid Nitrogen than 7200
System Hygiene
Good
Accu-Sample Technology / Valve Isolation
Best
Unparalled Hygiene & Uptime - Virtually no trap carry-over
Better
Accu-Sample Technology / Valve Isolation Extended Tenax Trap Backflush Bakeout
Water Management / Humid Samples
Good
ECTD, MPT, Dry Purge
Best
Near complete elimination of water
Better
ECTD, MPT, Dry Purge+ SmartSplit Water Management (3X Reduction of Water to GCMS)
Cycle Time
Good
Better
Best
Under 25 minutes injection to injection for soil gas or low level ambient or indoor air.
Physical Properties
Weight
35-42 lbs (120VAC), 48-54 lbs (240V)
33-40 lbs (120VAC), 46-52 lbs (240V)
35-42 lbs (120VAC), 48-54 lbs (240V)
Dimensions
9.5” Wide, 18” Tall, 22.5” Deep
9.5” Wide, 18” Tall, 22.5” Deep
9.5” Wide, 18” Tall, 22.5” Deep

Sample Data: Unparalleled Precision & Reliability

h
h

System Configurations

7650-M “Million Air” System

Introducing the most advanced instrumentation ever developed for analysis of volatile and light semi-volatile compounds in air and soil gas. Now, analyze any size canister in your inventory with the quality assurance of direct inlet robotics. The 7650-M features the new MillionAir™ option that includes the ability to perform rapid screening of samples without exposure to the 7200 Trapping system, thereby maintaining far superior system hygiene relative to other preconcentration systems.

7200 | 7016D Air Toxics System

The 7200 paired with the 7016D creates an excellent solution for 2.7, 3.2, 6L, and 15L canisters used for ambient level air toxics analysis in compliance with EPA Methods TO-14a and TO-15. The 7200’s 4-sample inlet can accommodate the simultaneous connection of up to three 7016D autosamplers to maximize unattended canister analysis.
