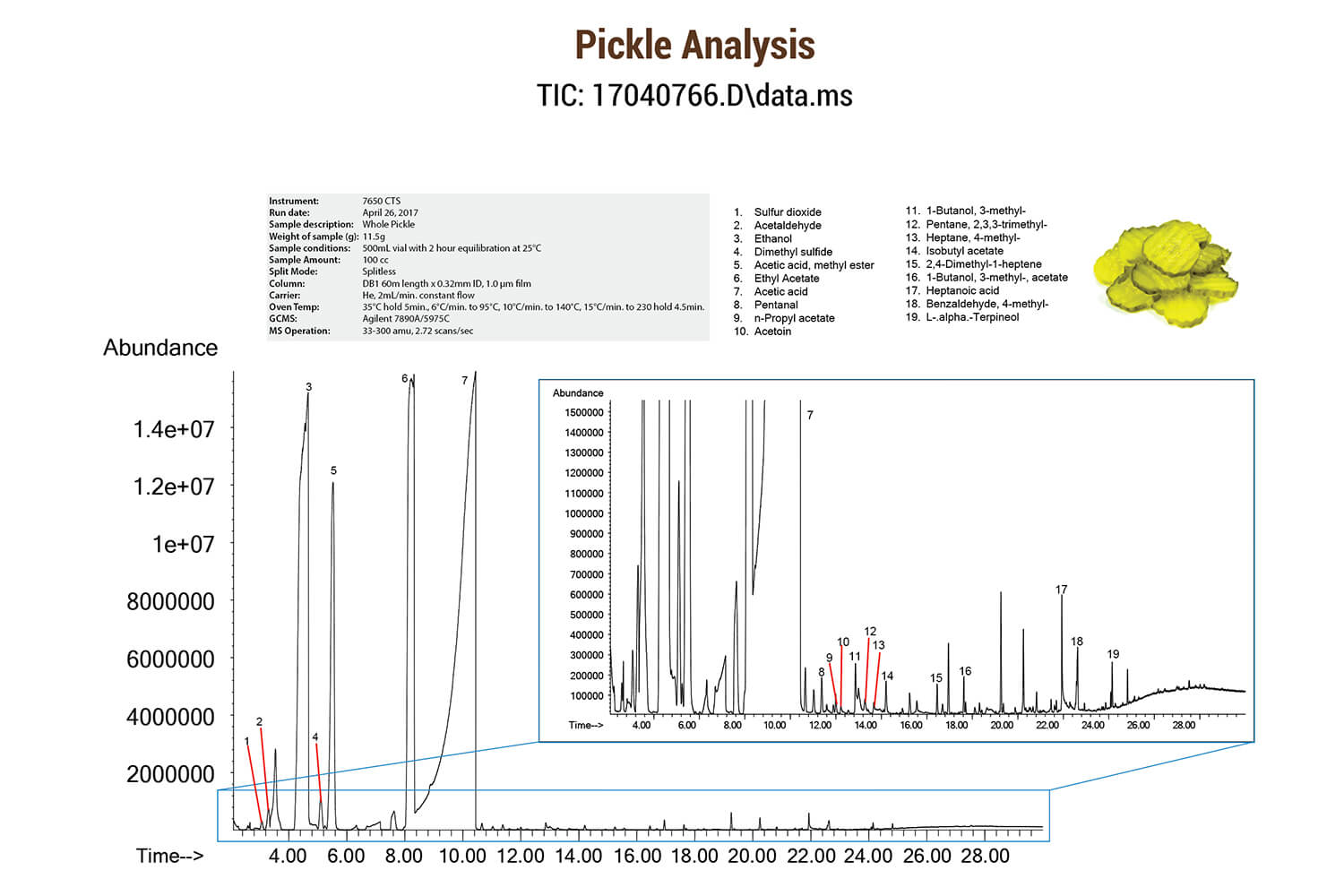

All studies represented by the chromatogram below have been conducted utilizing Large Volume Static Headspace analysis on the 7650HS-CTS

The all-new 7650HS-CTS is the only commercially available solution that can quantify the consumer experience by taking an equilibrium “snapshot” of the headspace to accurately determine its composition from the lightest through the heaviest compounds. The 7650HS-CTS is truly unique as it is the industries “only” system that uses multiple stages of true capillary columns to perform headspace preconcentration.

Pickle Analysis by GC/MS


Instrument: 7650HS-CTS
Run date: April 26, 2017
Sample description: Whole Pickle
Weight of sample (g): 11.5g
Sample conditions: 500mL vial with 2 hour equilibration at 25°C
Sample Amount: 100 cc
Split Mode: Splitless
Column: DB1 60m length x 0.32mm ID, 1.0 µm lm
Carrier: He, 2mL/min. constant flow
Oven Temp: 35°C hold 5min., 6°C/min. to 95°C, 10°C/min. to 140°C, 15°C/min. to 230 hold 4.5min.
GCMS: Agilent 7890A/5975C
MS Operation: 33-300 amu, 2.72 scans/sec

1. Sulfur dioxide
2. Acetaldehyde
3. Ethanol
4. Dimethyl sulfide
5. Acetic acid, methyl ester
6. Ethyl Acetate
7. Acetic acid
8. Pentanal
9. n-Propyl acetate
10. Acetoin

11. 1-Butanol, 3-methyl
12. Pentane, 2,3,3-trimethyl
13. Heptane, 4-methyl
14. Isobutyl acetate
15. 2,4-Dimethyl-1-heptene
16. 1-Butanol, 3-methyl-, acetate
17. Heptanoic acid
18. Benzaldehyde, 4-methyl
19. L-.alpha.-Terpineol
