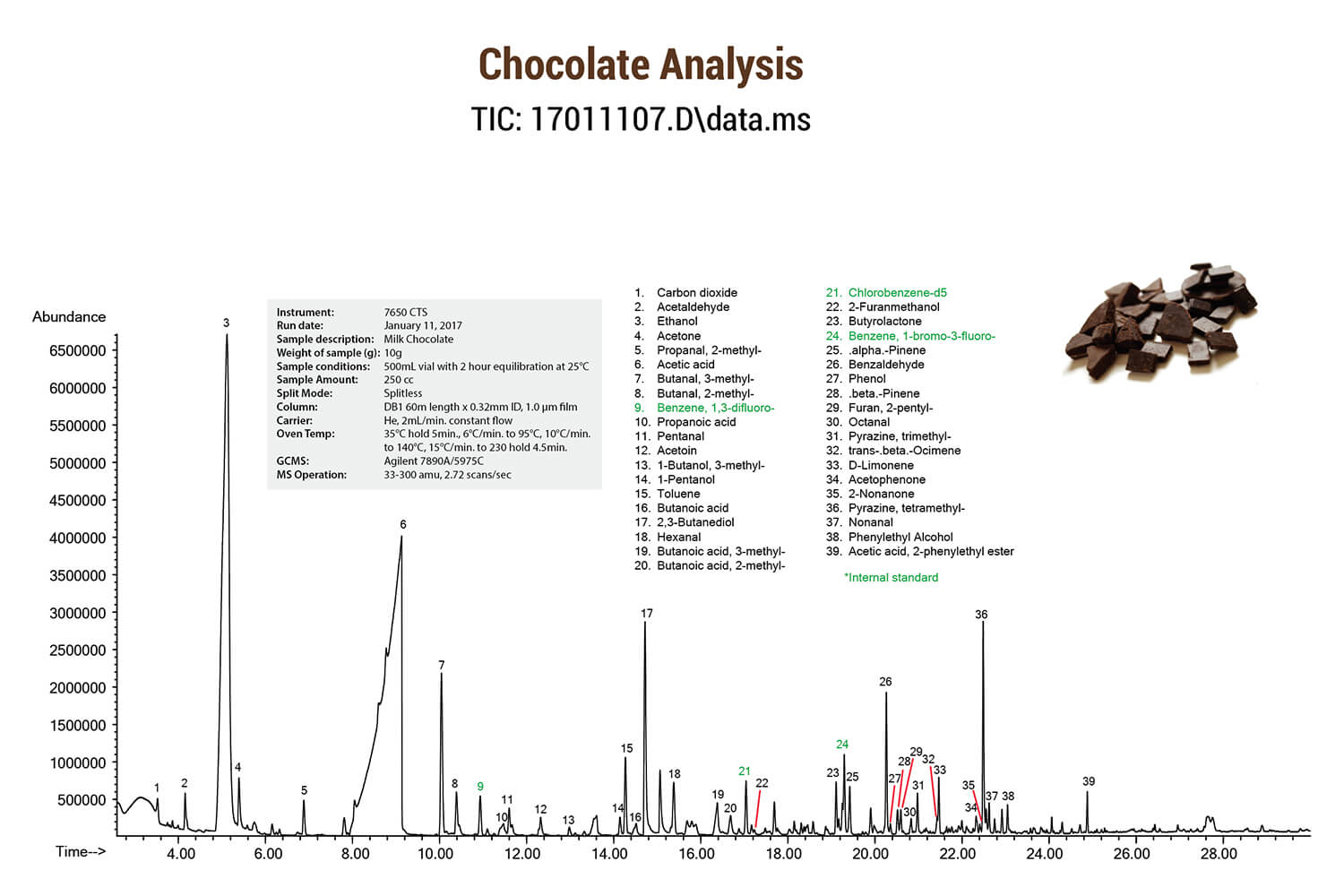

All studies represented by the chromatogram below have been conducted utilizing Large Volume Static Headspace analysis on the 7650HS-CTS

The all-new 7650HS-CTS is the only commercially available solution that can quantify the consumer experience by taking an equilibrium “snapshot” of the headspace to accurately determine its composition from the lightest through the heaviest compounds. The 7650HS-CTS is truly unique as it is the industries “only” system that uses multiple stages of true capillary columns to perform headspace preconcentration.

Chocolate Analysis by GC/MS

h

Instrument: 7650HS-CTS
Run date: January 24, 2016
Sample description: Milk Chocolate
Weight of sample (g): 10g
Sample conditions: 500mL vial with 2 hour equilibration at 25°C
Sample Amount: 250 cc
Split Mode: Splitless
Column: DB1 60m length x 0.32mm ID, 1.0 µm lm
Carrier: He, 2mL/min. constant flow
Oven Temp: 35°C hold 5min., 6°C/min. to 95°C, 10°C/min. to 140°C, 15°C/min. to 230 hold 4.5min.
GCMS: Agilent 7890A/5975C
MS Operation: 33-300 amu, 2.72 scans/sec

1. Carbon dioxide
2. Acetaldehyde
3. Ethanol
4. Acetone
5. Propanal, 2-methyl
6. Acetic acid
7. Butanal, 3-methyl
8. Butanal, 2-methyl
9. Benzene, 1,3-difluoro
10. Propanoic acid
11. Pentanal
12. Acetoin
13. 1-Butanol, 3-methyl-
14. 1-Pentanol
15. Toluene
16. Butanoic acid
17. 2,3-Butanediol
18. Benzene, 1-bromo-3-fluoro-
19. Butanoic acid, 3-methyl
20. Butanoic acid, 2-methyl-

21. Chlorobenzene-d5
22. 2-Furanmethanol
23. Butyrolactone
24. Benzene, 1-bromo-3-fluoro-
25. alpha.-Pinene
26. Benzaldehyde
27. Phenol
28. .beta.-Pinene
29.Furan, 2-pentyl
30. Octanal
31. Pyrazine, trimethyl
32. trans-.beta.-Ocimene
33. D-Limonene
34. Acetophenone
35. 2-Nonanone
36. Pyrazine, tetramethyl
37. Nonanal
38. Phenylethyl Alcohol
39. Acetic acid, 2-phenylethyl ester
