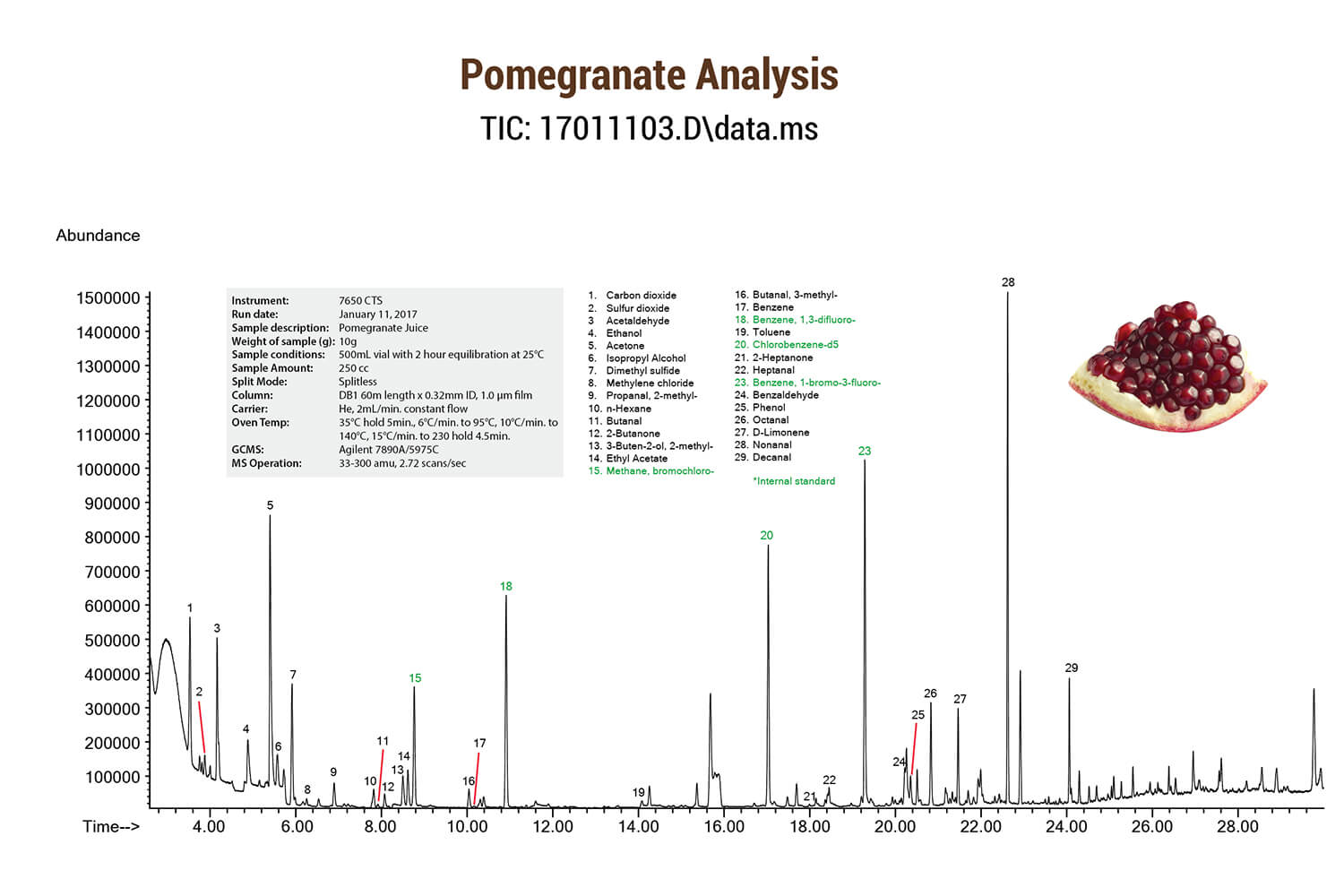

All studies represented by the chromatogram below have been conducted utilizing Large Volume Static Headspace analysis on the 7650HS-CTS

The all-new 7650HS-CTS is the only commercially available solution that can quantify the consumer experience by taking an equilibrium “snapshot” of the headspace to accurately determine its composition from the lightest through the heaviest compounds. The 7650HS-CTS is truly unique as it is the industries “only” system that uses multiple stages of true capillary columns to perform headspace preconcentration.

Pomegranate Analysis by GC/MS

h

Instrument: 7650HS-CTS
Run date: January 11, 2017
Sample description: Pomegranate Juice
Weight of sample (g): 10g
Sample conditions: 500mL vial with 2 hour equilibration at 25°C
Sample Amount: 250 cc
Split Mode: Splitless
Column: DB1 60m length x 0.32mm ID, 1.0 µm lm
Carrier: He, 2mL/min. constant flow
Oven Temp: 35°C hold 5min., 6°C/min. to 95°C, 10°C/min. to 140°C, 15°C/min. to 230 hold 4.5min
GCMS: Agilent 7890A/5975C
MS Operation: 33-300 amu, 2.72 scans/sec

1. Carbon dioxide
2. Sulfur dioxide
3. Acetaldehyde
4. Ethanol
5. Acetone
6. Isopropyl Alcohol
7. Dimethyl sulfide
8. Methylene chloride
9. Propanal, 2-methyl
10. n-Hexane
11. Butanal
12. 2-Butanone
13. 3-Buten-2-ol, 2-methyl
14. Ethyl Acetate
15. Methane, bromochloro-

16. Butanal, 3-methyl
17. Benzene
18. Benzene, 1,3-difluoro
19. Toluene
20. Chlorobenzene-d5
21. 2-Heptanone
22. Heptanal
23. Benzene, 1-bromo-3-fluoro
24. Benzaldehyde
25. Phenol
26. Octanal
27. D-Limonene
28. Nonanal
29. Decanal
