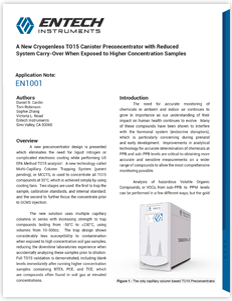

A new preconcentrator design is presented which eliminates the need for liquid nitrogen or complicated electronic cooling while performing US EPA Method TO15 analysis. A new technology called Multi-Capillary Column Trapping System (patent pending), or MCCTS, is used to concentrate all TO15 compounds at 35°C, which is achieved simply by using cooling fans. Two stages are used: the first to trap the sample, calibration standards, and internal standard; and the second to further focus the concentrate prior to GCMS injection.
The new solution uses multiple capillary columns in series with increasing strength to trap compounds boiling from -50°C to >230°C, using volumes from 10-500cc. The trap design shows considerably less susceptibility to contamination when exposed to high concentration soil gas samples, reducing the downtime laboratories experience when accidentally analyzing these samples prior to dilution. Full TO15 validation is demonstrated, including blank levels immediately after running higher concentration samples containing BTEX, PCE, and TCE, which are compounds often found in soil gas at elevated concentrations.
Entech is proud to release the world’s first multi-capillary column trapping system (MCCTS) patent pending, for the precise concentration of vapor phased volatile chemicals in the range of C3 to C18 without the need for liquid nitrogen or complicated electronic cooling. With over 28 years of continued improvements and industry feedback, the 7200CTS is as established and reliable as it is new and improved. Many of the important advancements that have led to its unparalleled reproducibility, such as quantitative volumetric measurements utilizing “Accu-Sample Technology,” and digital valve isolation, are left unchanged. The core trapping system, however, has been completely reengineered, giving way to a technology that will likely replace the utilization of packed traps for most, if not all methods requiring the preconcentration of vapor phase volatile organic compounds.
The Entech 7650-L20 is the only system handling automated injection of Tedlar bags and other gas phase samples using a single inlet robotic autosampler. The 7650-L20 can automate the analysis of up to 16 Tedlar bags, or 24 to 80 Bottle-Vac samplers or MiniCans depending on the size of the canister or Bottles. Canisters and gas sampling Bottle-Vacs can be heated prior to analysis to extend the molecular weight range of recoverable compounds, allowing a reliable way of measuring heavy volatiles or semi-volatiles. The dual loop system simultaneously injects an Internal standard along with the sample or calibration standard to support internal standard calibration methods. A 100% Silonite coated ceramic pathway ensures recovery of difficult compounds, creating the most comprehensive technique available for the quantitative measurement of organic compounds in gas phase samples. The 7650-L20 can automate the injection of gas samples to virtually all GCs by using the model specific communication cables available from Entech.
