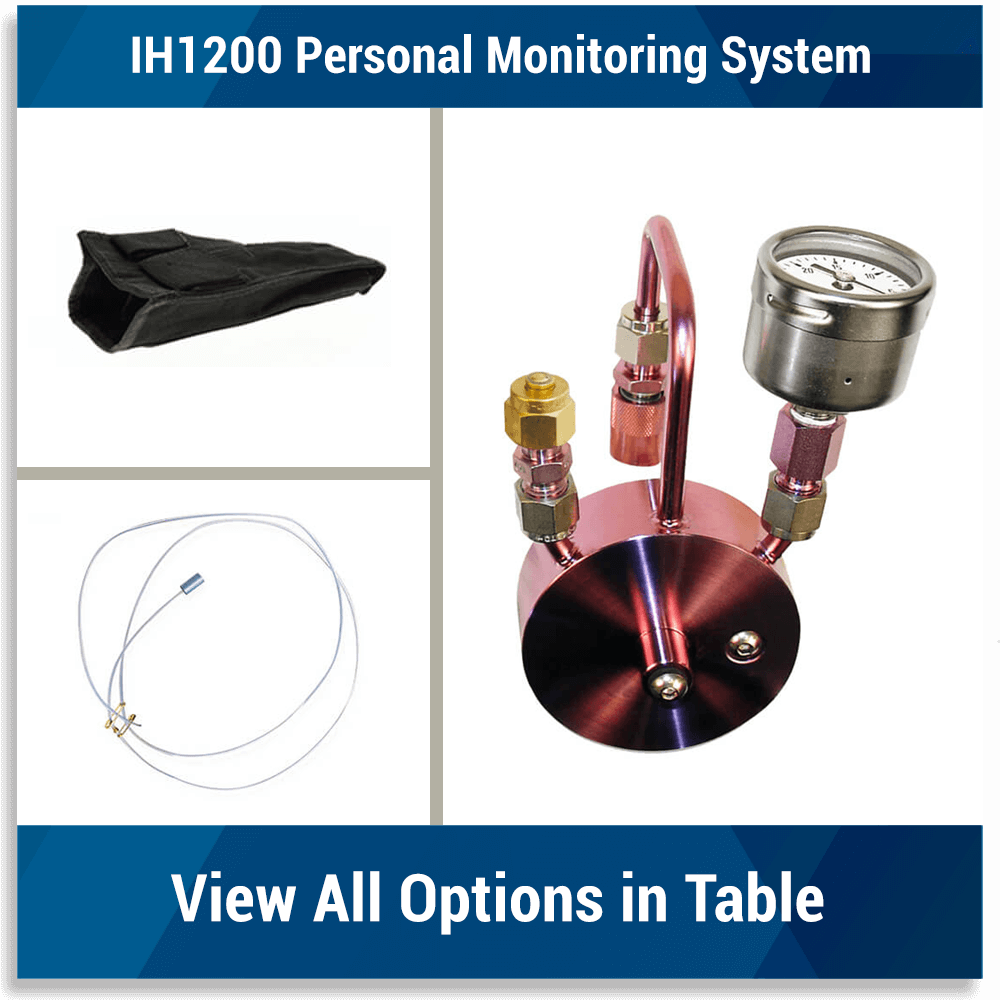

IH1200 Personal Monitoring System
The IH1200 Personal Monitors utilize classical vacuum sampling into MiniCans™ and Bottle-Vacs™ to perform STEL or TWA monitoring for up to 12 hours.
|Personal Monitoring Flow Controller||39-CS1200Px||EA|
|Female Micro-QT™ Valve||30-22800||EA|
|Silonite® Inlet Line (w/Teflon® Sleeve)||39-36020||EA|
|Silonite® Inlet Filter||39-36050||EA|
The IH1200 Personal Monitors utilize classical vacuum sampling into MiniCans™ and Bottle-Vacs™ to perform STEL or TWA monitoring for up to 12 hours. Like HDS Personal Monitors, sampling using the IH1200 eliminates the concentration and matrix effects associated with adsorbent-based sampling techniques. The IH1200 is universal, recovering all analytes in a single sampling event with no need to choose different media. Large flow rate adjustments are made by changing inlet restriction (see table below), while fine adjustments (2–3x) are made using a built in flow adjust feature. Enough sample is collected to allow multiple analyses in the laboratory, with detection limits down to low PPB if needed. The IH1200 meets the requirements of OSHA Method PV2120 for determination of workplace contaminants using MiniCan™ samplers. The sampling procedure is easy: Connect an evacuated MC450QT MiniCan™ or 500mL Bottle-Vac™ and sampling starts. Monitor the fill rate on the built-in gauge to document a constant fill rate during the sampling event; disconnect the canister to stop sampling.
|Sampling Method|| |
Helium Diffusion Sampling
