Product Description
Inlet restrictors provide stable operation from -20ËšC to +50ËšC. Now with 10 restrictor ranges covering 15 minutes to 1 month.
****DISCONTINUED BY MANUFACTURER – NO LONGER AVAILABLE FOR PURCHASE****
Inlet restrictors provide stable operation from -20ËšC to +50ËšC. Now with 10 restrictor ranges covering 15 minutes to 1 month.
Weight | 1 lbs |
---|---|
Sampling time | 15 Min, 1 Hr, 3 Hr, 8 Hr, 24 Hr, 48 Hr, 1 Week, 2 Week, 4 Week |
Flow Code | 3+, O, 1, 2, 3, 5, 6, 4, 7 |
Flow Range | 0.1-0.3 cc/min, 0.2-0.6 cc/min, 0.5-1.5 cc/min, 1-3 cc/min, 150-450 cc/min, 2-6 cc/min, 20-60 cc/min, 4-12 cc/min, 50-150 cc/min, 7-21 cc/min |

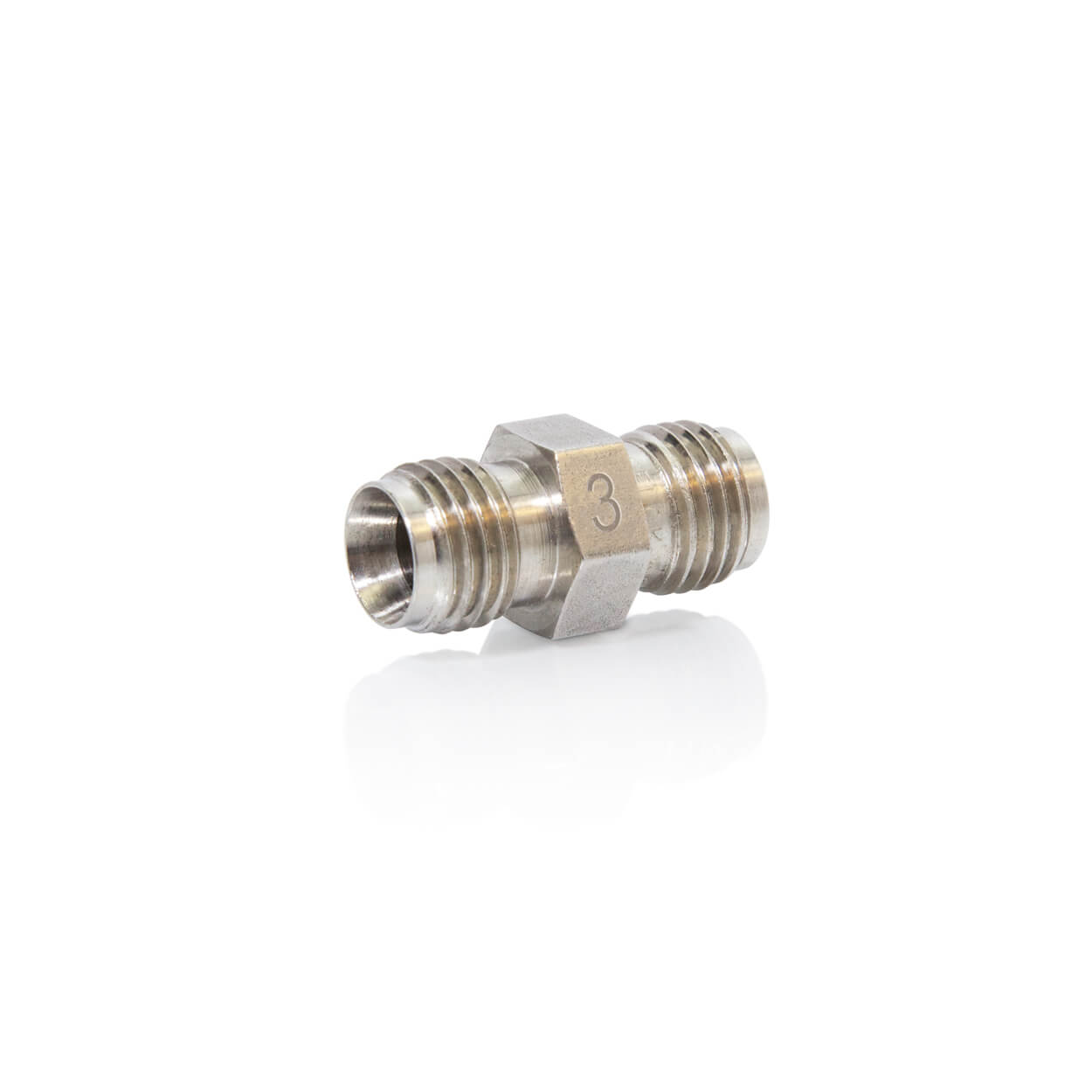

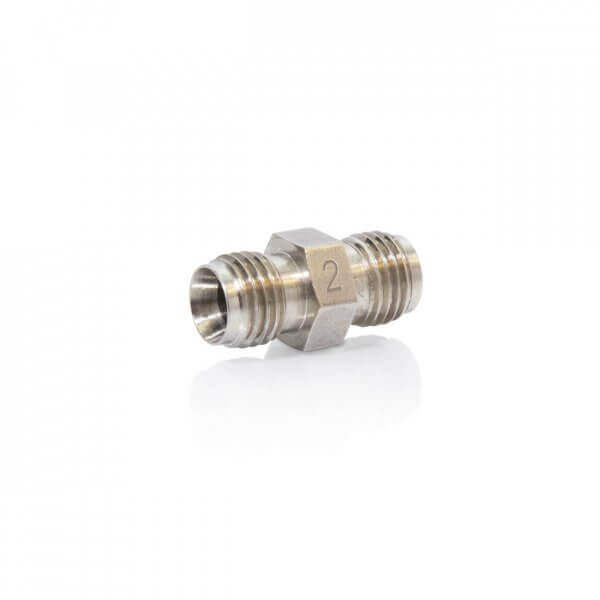

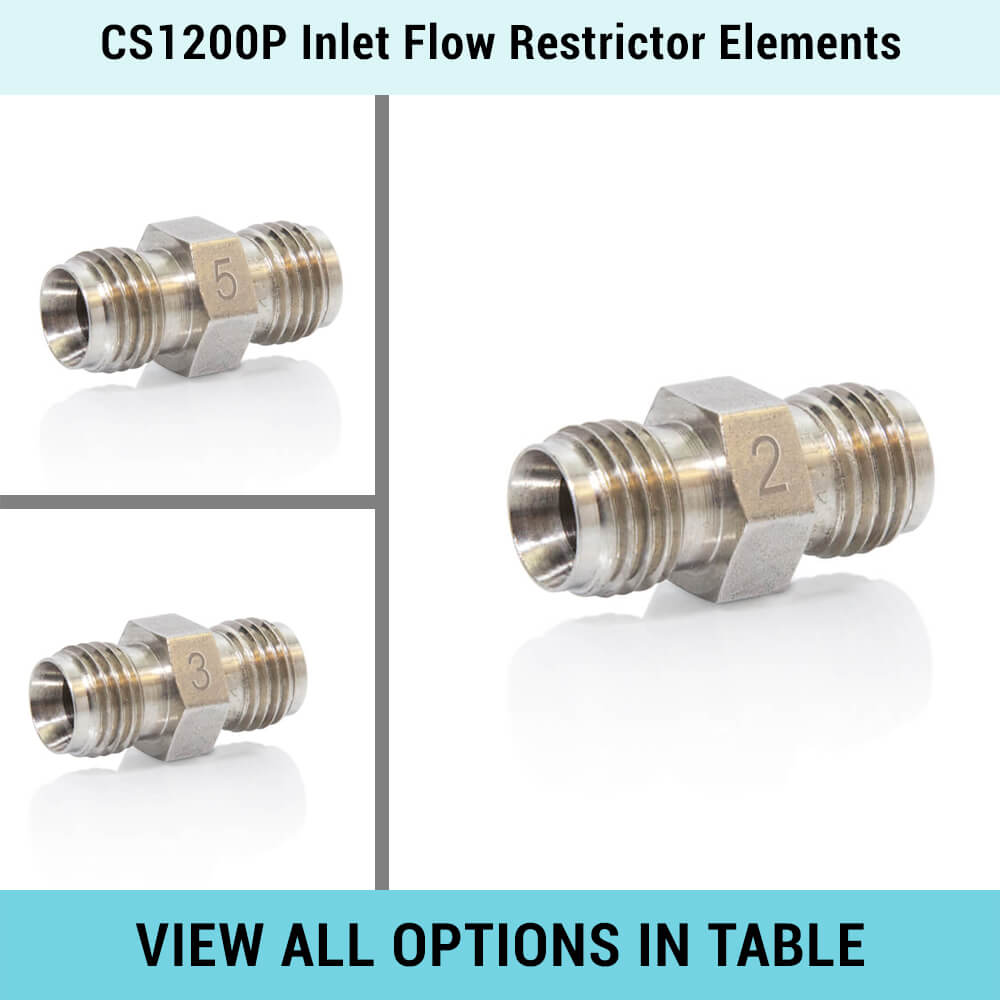

CS1200 with stamped flow range code.
CS1200E | Restrictors | Recommended Restrictor for Volumes and Fill Times | ||||||||||
Code | Part No. | Flow Range | Fill Duration | 450ML | 600ML | 1L | 1.4L | 2.7L | 3.2L | 6L | 15L |
0 | 39-23000(S) | 150-450cc/min | 15 min | 2 | 2 | 1 | 1 | 0 | 0 | 0 | – |
1 | 39-23010(S) | 50-150cc/min | 1 hr | 3+ | 3+ | 3 | 3 | 2 | 2 | 1 | 0 |
2 | 39-23030(S) | 20 – 60cc/min | 3 hrs | 4+ | 4 | 4 | 3+ | 3 | 3 | 2 | 1 |
3 | 39-23080(S) | 7 – 21cc/min | 8 hrs | 5 | 5 | 4+ | 4+ | 4 | 3+ | 3 | 2 |
3+ | 39-23160(S) | 4 – 12cc/min | 12 hrs | 6 | 5 | 5 | 4+ | 4 | 4 | 3+ | 3 |
4 | 39-23240G* | 2 – 6cc/min | 1 day | 6 | 6 | 5 | 5 | 4+ | 4+ | 4 | 3+ |
4+ | 39-23480G* | 1 – 3cc/min | 2 days | 7 | 7 | 6 | 6 | 5 | 5 | 4+ | 4 |
5 | 39-24010G* | 0.5-1.5cc/min | 7 days | – | – | – | 7 | 7 | 7 | 6 | 5 |
6 | 39-24020G* | 0.2-0.6cc/min | 14 days | – | – | – | – | 7 | 7 | 7 | 5 |
7 | 39-24040G* | 0.1-0.3cc/min | 30 days | – | – | – | – | – | – | 7 | 6 |
*Available in Glass Elements only. |
Assuming canisters are filled to 4″ Hg below atmosphere |
Target Flow Rate show in cc/min. for canisters with Micro-QT valves and the Toxic Organics Valve only.
Fill Duration | 450ML cc/min |
600ML cc/min |
1L cc/min |
1.4L cc/min |
2.7L cc/min |
3.2L cc/min |
6L cc/min |
15L cc/min |
|||
1 Hour | 6.5 | 8.7 | 14.5 | 20.3 | 39.2 | 46.4 | 87 | – | |||
2 Hours | 3.3 | 4.4 | 7.3 | 10 | 20 | 23.2 | 43.5 | 109 | |||
3 Hours | 2.2 | 2.9 | 4.8 | 6.8 | 13.1 | 15.5 | 29 | 72.5 | |||
4 Hours | 1.63 | 2.2 | 3.6 | 5.1 | 9.8 | 11.6 | 21.8 | 54.4 | |||
8 Hours | 0.82 | 1.1 | 1.8 | 2.5 | 4.9 | 5.8 | 10.9 | 27.2 | |||
12 Hours | 0.54 | 0.73 | 1.2 | 1.7 | 3.3 | 3.9 | 7.3 | 18.2 | |||
24 Hours | – | – | 0.60 | 0.85 | 1.6 | 1.9 | 3.6 | 9.06 | |||
2 Days | – | – | – | – | 0.82 | 0.97 | 1.8 | 4.5 | |||
1 Week | – | – | – | – | – | – | 0.52 | 1.3 | |||
For sampling events above 3000 feet, reduce flow rate by 15%. MicrovalvesTM are recommended for use on SiloniteTM Canisters and MinicansTM upto 3.2L. Larger Canisters with MicroValvesTM may require longer clearing time due to the added restriction of the valve. the Toxic Organics ValveTM can be used with all canister sizes with the exception of 600mL. The 600mL MinicanTM with an integrated Micro-QT2TM valve is designed only for MicroValveTM connections. |
The following tables shows the target flow rates of various canister sizes and sampling durations.
(Target pressure is 0.87 atmospheres)
450mL Minican – Time from 20″Hg to 10″Hg
Gauge Seconds | Code | Target Flow Rate cc/min |
Duration |
15.5 | 4 | 2.21 | 3 Hours |
31 | 5 | 1.09 | 6 Hours |
41.5 | 5 | 0.82 | 8 Hours |
1L Minican – Time from 20″Hg to 10″Hg
Gauge Seconds | Code | Target Flow Rate cc/min |
Duration |
7 | 4 | 4.8 | 3 Hours |
18.5 | 4 | 1.80 | 8 Hours |
56 | 5 | 0.60 | 24 Hours |
3.2L SiloniteTM Canister – Time from 20″Hg to 10″Hg
Gauge Seconds | Code | Target Flow Rate cc/min |
Duration |
6 | 4 | 5.8 | 8 Hours |
17.5 | 4 | 1.93 | 24 Hours |
35 | 5 | 0.96 | 82 Days |
6L SiloniteTM Canister – Time from 20″Hg to 10″Hg
Gauge Seconds | Code | Target Flow Rate cc/min |
Duration |
5 | 3 | 7.3 | 12 Hours |
9.5 | 4 | 3.6 | 24 Hours |
65.5 | 5 | 0.52 | 1 week |
