Chameleon Soil Gas Sampler – 100cc/min Flow Rate – Compression Inlet to Female Micro-QT Outlet

SKU: SG-CHAM-CQ-100

100-cc/min Flow Rate – Compression Fitting Inlet to Female Micro-QT Outlet Connection.

   Pin it

Product Description

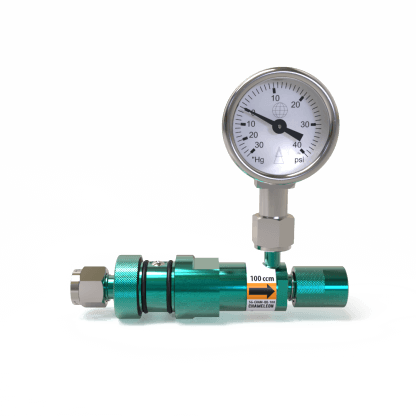

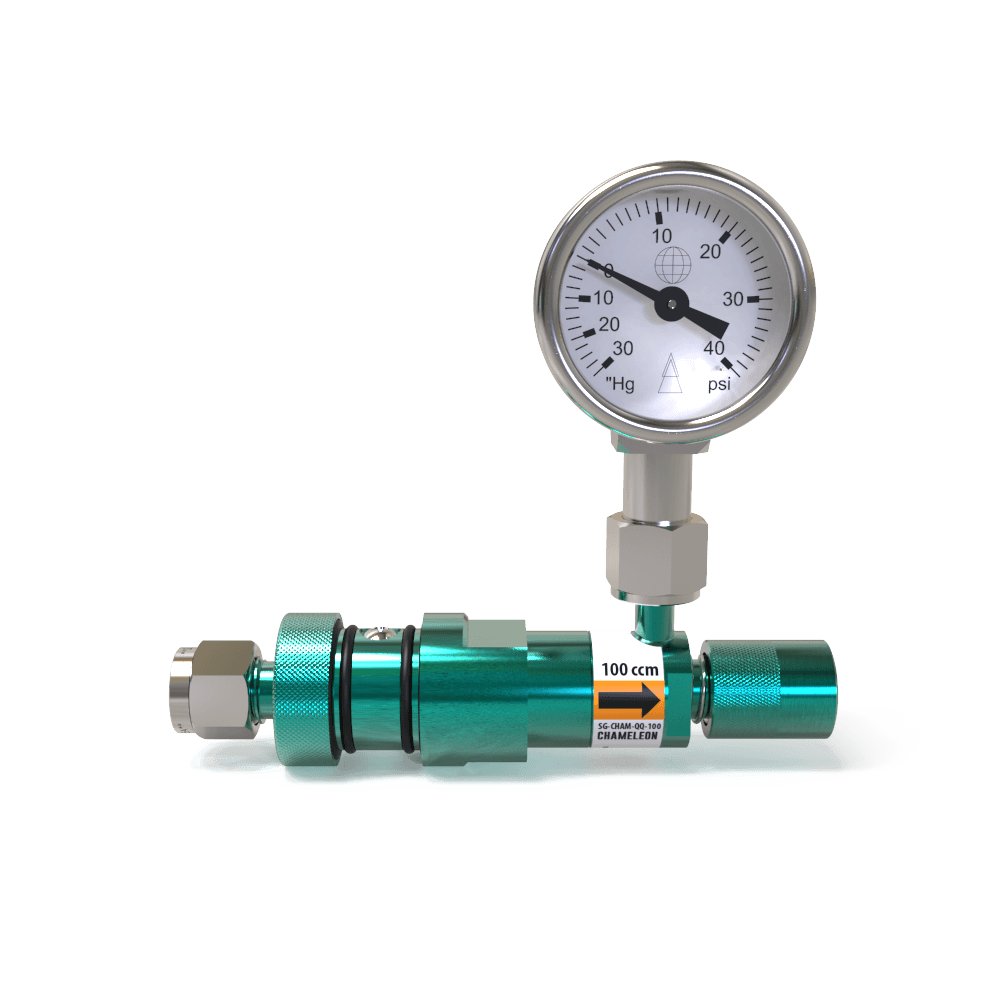

Chameleon Soil Gas Sampler

100-cc/min Flow Rate – Compression Fitting Inlet to Female Micro-QT Outlet Connection.

  • The Chameleon can be configured to minimize compression fittings based on the probe, line, or fitting it needs to connect to
  • The inlet and outlet can be configured separately to optimize the sample train

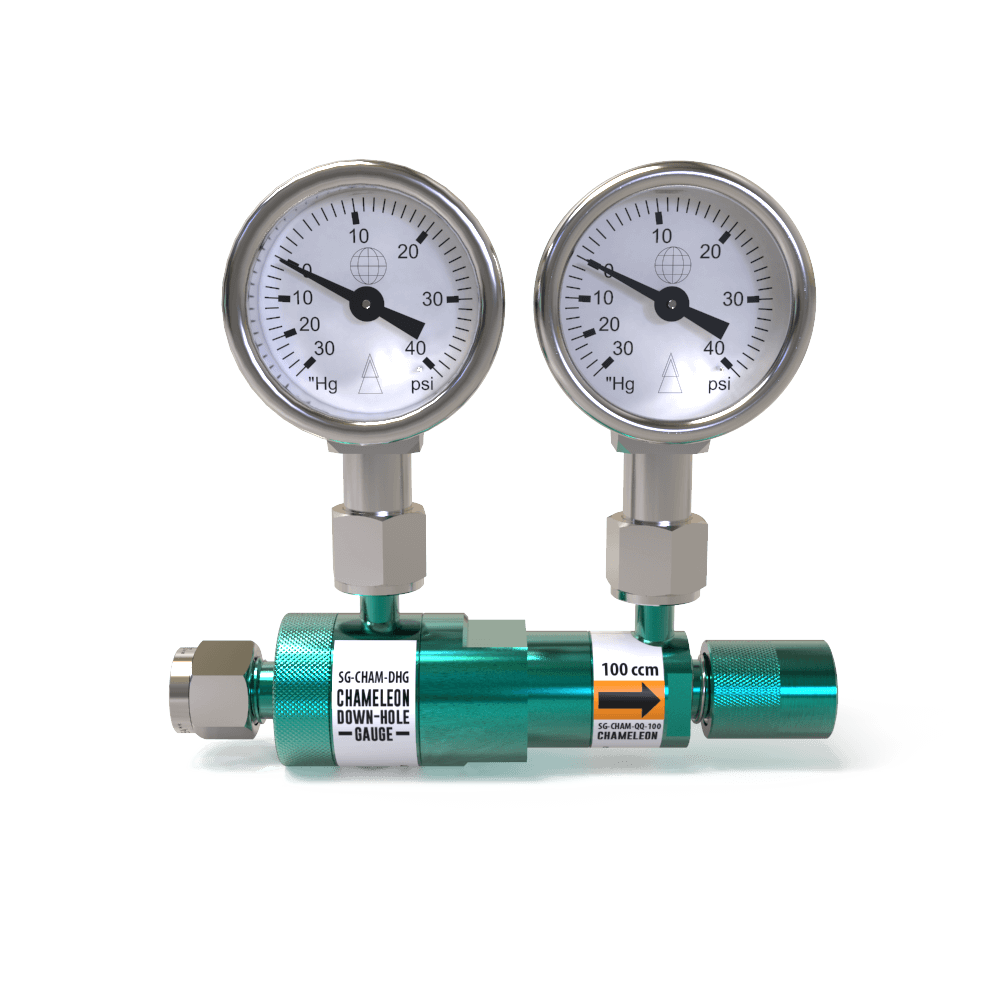

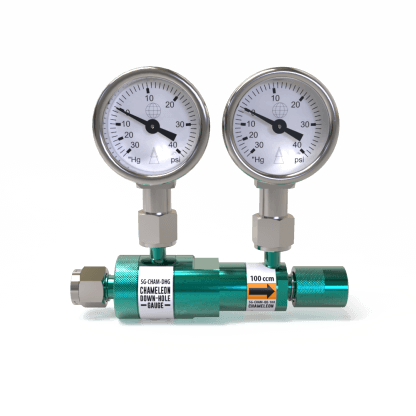

  • The down hole vacuum gauge monitor can be added to any configuration, and verifies that excessive vacuum is not forming in the soil (<7.3” Hg vacuum)
  • All configurations can be maintained under vacuum during shipment to the field to perform the shut-in test (leak test)automatically

Additional Information

Weight 1 lbs
Flow Rate

100cc/Min
