7200|7650 “Million Air” Autosampler

The 7200A Preconcentrator and 7650-M Inlet

Combined for state-of-the-art whole air analysis

The 7200A | 7650-M ‘Million Air™’ Analysis System is one of the most advanced instrument combinations ever developed for the analysis of volatile and light semi-volatile compounds in air and soil gas. Now, you can choose to analyze any size canister in your inventory with the quality assurance of direct inlet robotics. The 7650-M features the new Million Air™ option and the ability to preheat samples to 150°C for quantitative recovery of higher molecular weight compounds beyond the range of normal TO-15 analytes.

[expand title=”Read More” swaptitle=”Minimize”]

The 7200A and 7650-M canister autosampler minimizes carryover when exposed to high concentration samples by combining brief sample contact time, zero-dead-volume canister connections, and Accu-Sample™ technology found in the 7200. Accu-Sample™ control completely isolates samples within specific, low-volume flow path segments, and prevents trap exposure during important sample select and preflush operations. The 7200’s built-in loop option allows as little as 0.25cc to be precisely controlled and injected. The result is greater dynamic range and a reduction in the number of sample dilutions required when analyzing Soil Gas and other high-concentration samples.[/expand]

7200/7650-M Air analysis Features

Now analyzes Tedlar® bags and Large Silonite Canisters!



Direct Inlet Robotics

The 7650-M features a single inlet with a Silonite-D™ coated transfer line to eliminate rotary valves and multiple inlet lines from the inlet flow path for the best possible sample isolation and analytical accuracy.

Quantitative Accuracy

Sampling and analytical precision is not affected by changing matrices (air, humid air, nitrogen, helium, CO2, methane, argon, hydrogen).

Sample Heating

The 7650 canister autosampler can preheat a canister up to 150°C prior to analysis for the best possible SVOC recoveries.

Million Air™ System

Very low volume injection mode that allows analysis of a concentration range of up to one million fold.

Automated Analysis

Accu-Sample™ technology provides superior water management to quantitatively analyze 10 – 1000cc of sample volume. Choose the 7200A Loop option to achieve accurate sample volumes from 0.25cc to 1cc.

Extended Range Air Analysis

Wide volume range (0.25–1000cc) for increased dynamic range without dilution. Directly handle PPM level samples without carryover. Supports single canister calibrations.

Large Silonite™ Canister & Tedlar® Bag Analysis

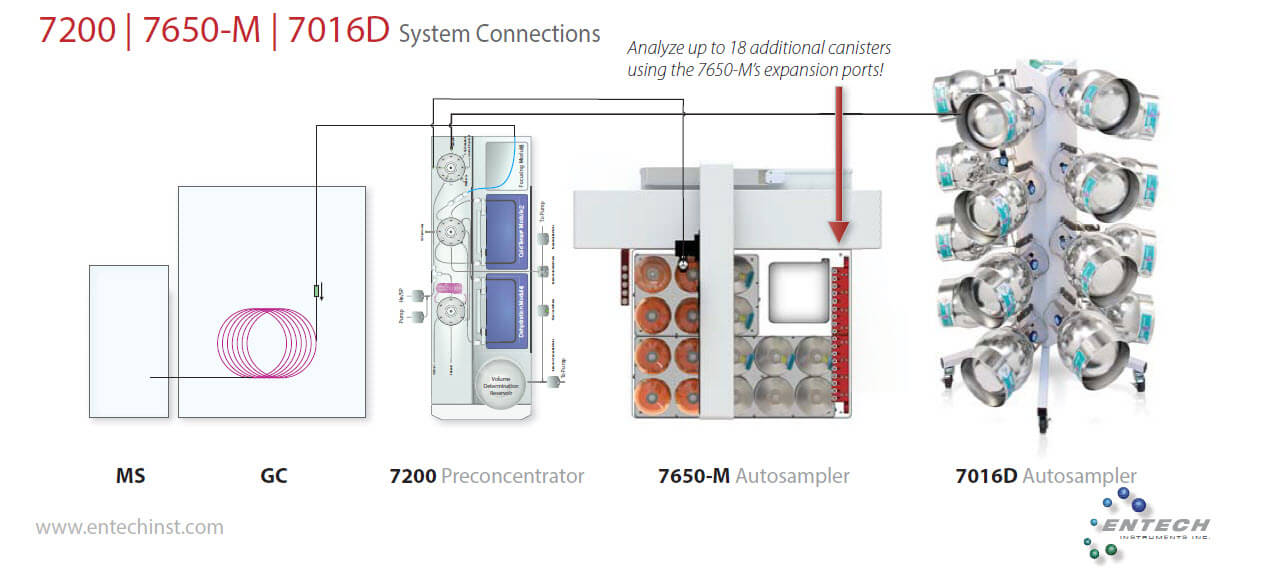

Add two, 9 port expansion ports to easily connect 18 large canisters and Tedlar® bags. The 7200A also features a built-in 4 sample inlet that can accommodate up to two 7016 or 7016D autosamplers in addition to the 7650-M for unsurpassed flexibility and sample throughput.

7650-M Functional Diagrams

A Canister Analyzer with the amazing Precision

Accu-Sample™ technology provides superior water management to quantitatively analyze 10 – 1000cc of sample volume. Choose the 7200A Loop option to achieve accurate sample volumes from 0.1cc to 1cc.

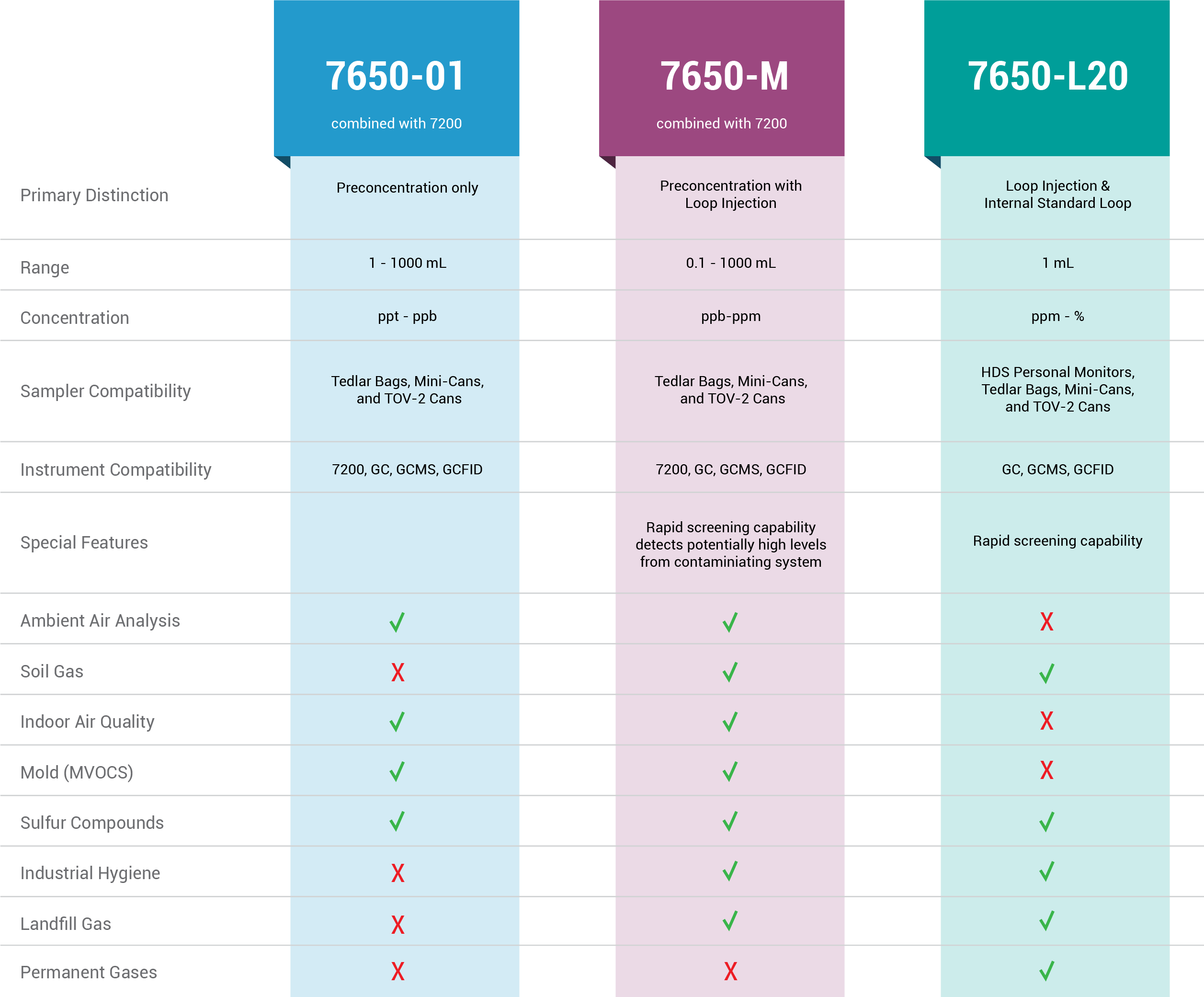

Compare the 7650's!

Theanalyzes Tedlar® bags and canisters

Introducing the 7200A | 7650-M, Million Air™ Analysis System. The most advanced instrumentation ever developed for analysis of volatile and light semi-volatile compounds in air and soil gas. Now, analyze any size canister in your inventory with the quality assurance of direct inlet robotics. The 7650-M features the new Million Air™ option that includes the ability to perform rapid screening of samples without exposure to the 7200A Trapping system, thereby maintaining far superior system hygiene relative to other preconcentration systems.
