Perform Sample Screening, Multiple Analyses, and more.

environmental Icon

Sample Screening

Desorb the tube sample into deactivated glass bottles and analyze as little as 0.01% of the original sample.
repeat analysis Icon

Perform Multiple Analyses

Get accurate data with the assurance of multiple analyses in one, elegant solution.
software icon

Software

Improved Windows® software with an advanced and intuitive user interface.
average Icon

Increase Dynamic Range

Optimize GCMS resolution for quantitative analysis.

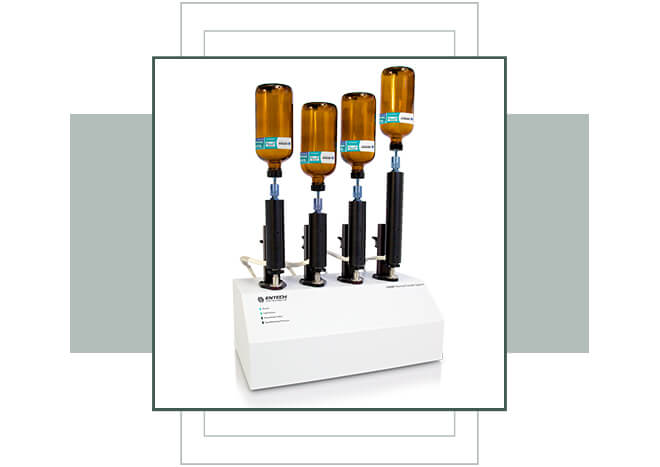

5400 Thermal Transfer System

An elegant solution for Thermal Desorption Tube screening and analysis by GCMS.

The analysis of adsorbent tubes can be a nightmare for analytical laboratories, especially when there is a requirement to get results on 100% of the tubes tested. Instrument problems, unexpected analyte loading outside of the GCMS calibrated range, and cross-contamination make the normal “one-shot” analysis very risky. Even attempting to recover a “split” fraction of the tube sample onto another tube is plagued with problems such as added background, poor leak-free validation, and incomplete recoveries from yet a second tube.

Perform Sample Screening, Multiple Analyses, and more. All automated with the 5400B.

The 5400B Thermal Transfer System simplifies the entire thermal desorption tube analysis process. The 5400B automates the precise transfer of tube samples into vacuum-tight Bottle-Vac™ samplers. During desorption, approximately 600cc of nitrogen is used to recover the tube sample much more completely than direct GC thermal desorbers – which attempt to desorb the sample using as little helium as possible. The 5400B performs an automated leak check before thermally desorbing the tube sample to ensure quantitative sample recovery.

Financial Benefits

An elegant solution for Thermal Desorption Tube screening and analysis by GCMS.

The analysis of adsorbent tubes can be a nightmare for analytical laboratories, especially when there is a requirement to get results on 100% of the tubes tested. Instrument problems, unexpected analyte loading outside of the GCMS calibrated range, and cross-contamination make the normal “one-shot” analysis very risky. Even attempting to recover a “split” fraction of the tube sample onto another tube is plagued with problems such as added background, poor leak-free validation, and incomplete recoveries from yet a second tube.

Technological Advancements

Perform Sample Screening, Multiple Analyses, and more. All automated with the 5400B.

The 5400B Thermal Transfer System simplifies the entire thermal desorption tube analysis process. The 5400B automates the precise transfer of tube samples into vacuum-tight Bottle-Vac™ samplers. During desorption, approximately 600cc of nitrogen is used to recover the tube sample much more completely than direct GC thermal desorbers – which attempt to desorb the sample using as little helium as possible. The 5400B performs an automated leak check before thermally desorbing the tube sample to ensure quantitative sample recovery.

Configuration

h

Related Products

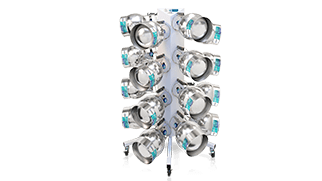

7016D

7016D Canister Autosampler

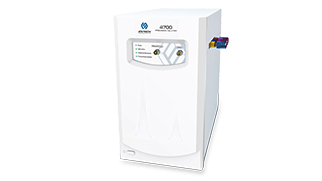

4700

4700 Precision Diluter

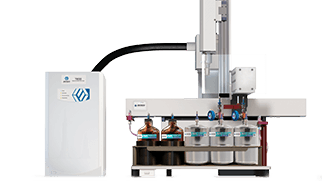

7200

7200 Preconcentrator

Watch and Learn!

Technical Specs

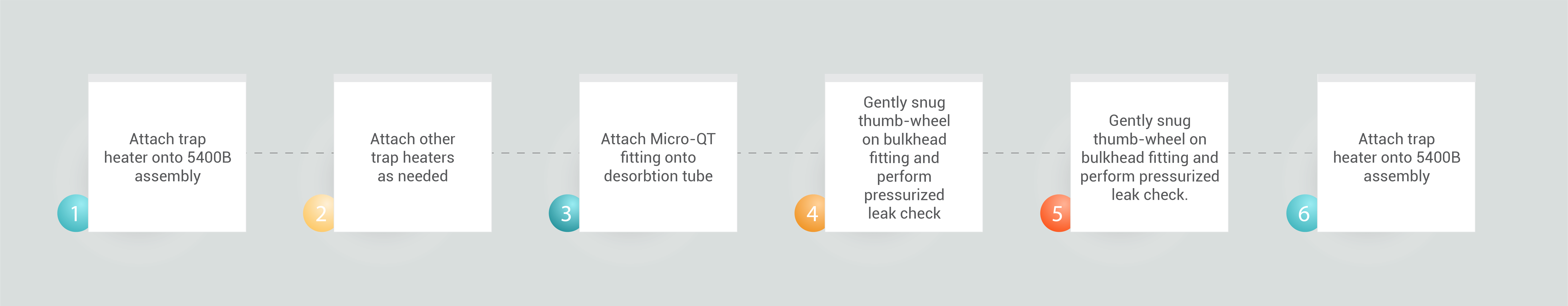

A brief overview of how this works...

Once the sample is transferred into a Bottle-Vac™, as little as 0.1–1.0cc of the sample can be analyzed, or the entire volume using a 7200 or 7200 / 7650. Further dilutions are also easily accomplished.

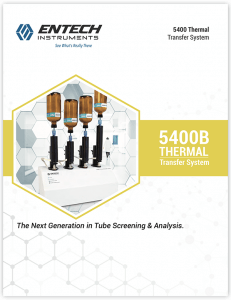

5400B Thermal Transfer Brochure

The analysis of adsorbent tubes can be a nightmare for analytical laboratories, especially when there is a requirement to get results on 100% of the tubes tested. Instrument problems, unexpected analyte loading outside of the GCMS calibrated range, and cross-contamination make the normal “one-shot” analysis very risky. Even attempting to recover a “split” fraction of the tube sample onto another tube is plagued with problems such as added background, poor leak-free validation, and incomplete recoveries from yet a second tube.
