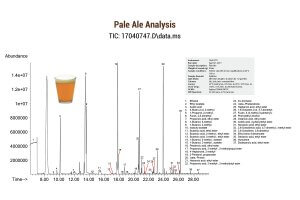

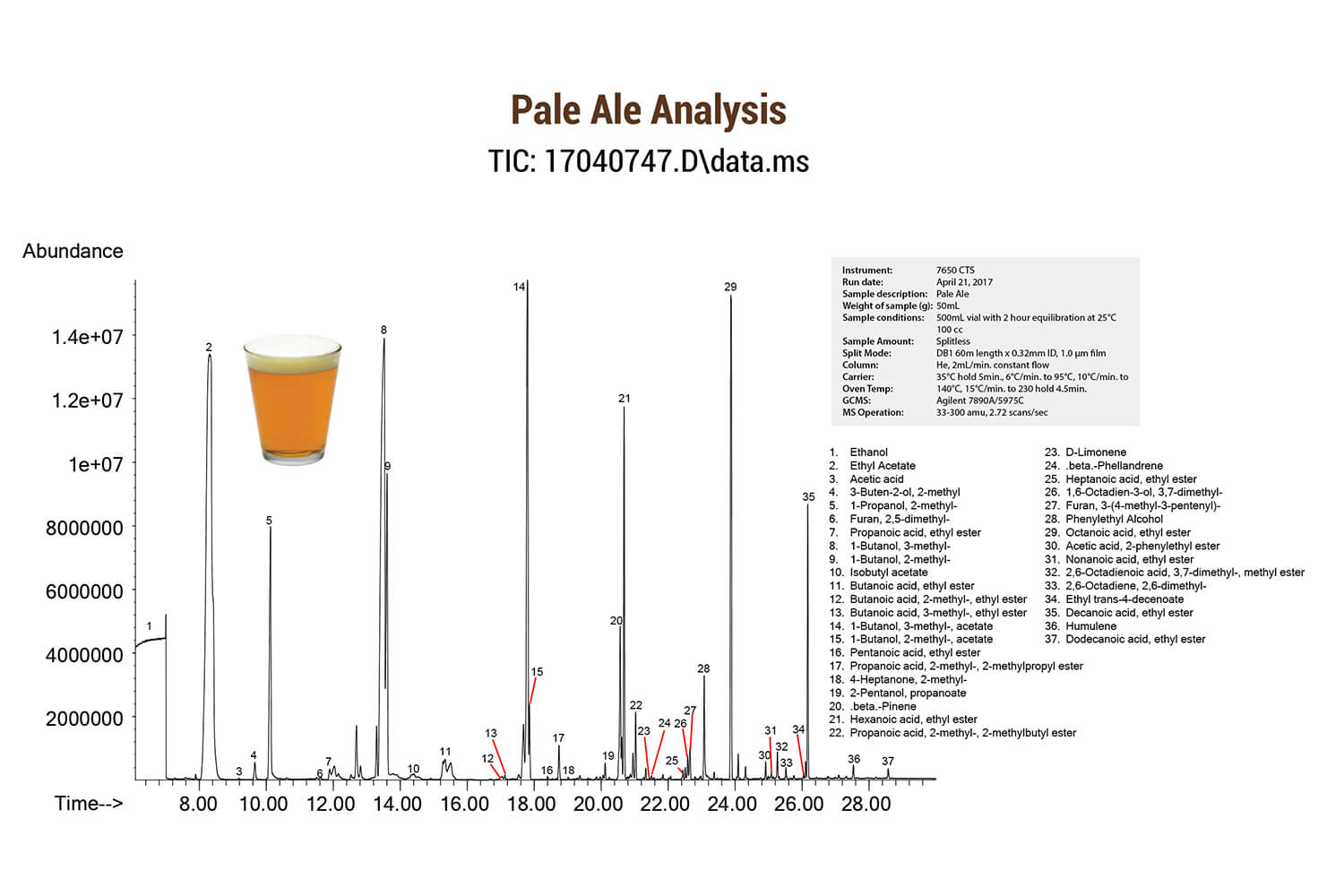

All studies represented by the chromatogram below have been conducted utilizing Large Volume Static Headspace analysis on the 7650HS-CTS

The all-new 7650HS-CTS is the only commercially available solution that can quantify the consumer experience by taking an equilibrium “snapshot” of the headspace to accurately determine its composition from the lightest through the heaviest compounds. The 7650HS-CTS is truly unique as it is the industries “only” system that uses multiple stages of true capillary columns to perform headspace preconcentration.

Pale Ale Volatiles Analysis by GC/MS


Instrument: 7650HS-CTS
Run date: April 21, 2017
Sample description: Pale Ale
Weight of sample (g): 50mL
Sample conditions: 500mL vial with 2 hour equilibration at 25°C
Sample Amount: 100 cc
Split Mode: Splitless
Column: DB1 60m length x 0.32mm ID, 1.0 µm lm
Carrier: He, 2mL/min. constant flow
Oven Temp: 35°C hold 5min., 6°C/min. to 95°C, 10°C/min. to 140°C, 15°C/min. to 230 hold 4.5min.
GCMS: Agilent 7890A/5975C
MS Operation: 33-300 amu, 2.72 scans/sec

1. Ethanol
2. Ethyl Acetate
3. Acetic acid
4. 3-Buten-2-ol, 2-methyl
5. 1-Propanol, 2-methyl
6. Furan, 2,5-dimethyl
7. Propanoic acid, ethyl ester
8. 1-Butanol, 3-methyl-
9. 1-Butanol, 2-methyl-
10. Isobutyl acetate
11. Butanoic acid, ethyl ester
12. Butanoic acid, 2-methyl-, ethyl ester
13. Butanoic acid, 3-methyl-, ethyl ester
14. 1-Butanol, 3-methyl-, acetate
15. 1-Butanol, 2-methyl-, acetate
16. Pentanoic acid, ethyl ester
17. Propanoic acid, 2-methyl-, 2-methylpropyl ester
18. 4-Heptanone, 2-methyl-
19. 2-Pentanol, propanoate
20. beta.-Pinene
21. Hexanoic acid, ethyl ester
22. Propanoic acid, 2-methyl-, 2-methylbutyl ester

24. .beta.-Phellandrene
25. Heptanoic acid, ethyl ester
26. 1,6-Octadien-3-ol, 3,7-dimethyl
27. Furan, 3-(4-methyl-3-pentenyl)-
28. Phenylethyl Alcohol
29. Octanoic acid, ethyl ester
30. Acetic acid, 2-phenylethyl ester
31. Nonanoic acid, ethyl ester
32. 2,6-Octadienoic acid, 3,7-dimethyl-, methyl ester
33. 2,6-Octadiene, 2,6-dimethyl
34. Ethyl trans-4-decenoate
35. Decanoic acid, ethyl ester
36. Humulene
35. Dodecanoic acid, ethyl ester
